How Do Wastegate Valves Work, and Why Are They Important?

What Is a Wastegate Valve, and How Does It Work?

The wastegate valve is a pressure-regulated valve used in the exhaust system of turbocharged engines. Its role is to control the turbine speed by bypassing a portion of exhaust gases around the turbine. This process prevents excessive boost pressure, which could damage the engine and the turbocharger.

• When the engine's boost pressure reaches the desired level, the valve opens, redirecting the excess exhaust gas.
• The valve’s operation is typically controlled by a spring preload and/or a vacuum actuator.
• In modern systems, electronically controlled wastegates provide even more precise regulation.

Types of Wastegate Valves: Which One Should You Choose?

1. Internal Wastegate

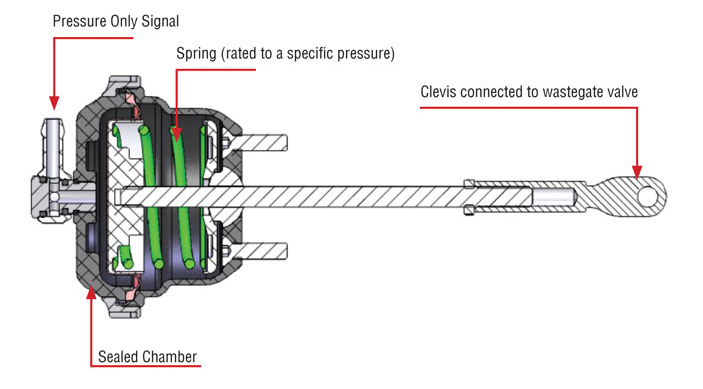

The internal wastegate is integrated directly into the turbocharger.

• Advantages: Compact design, easy installation, lower cost.
• Disadvantages: Limited performance control, not ideal for high-power engines.

2. External Wastegate

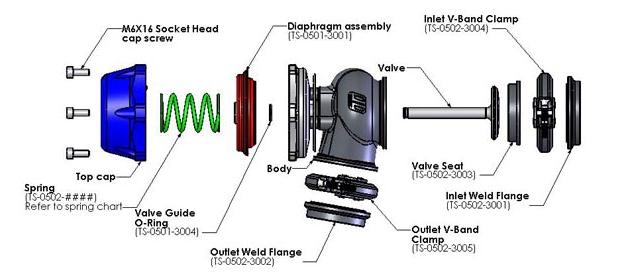

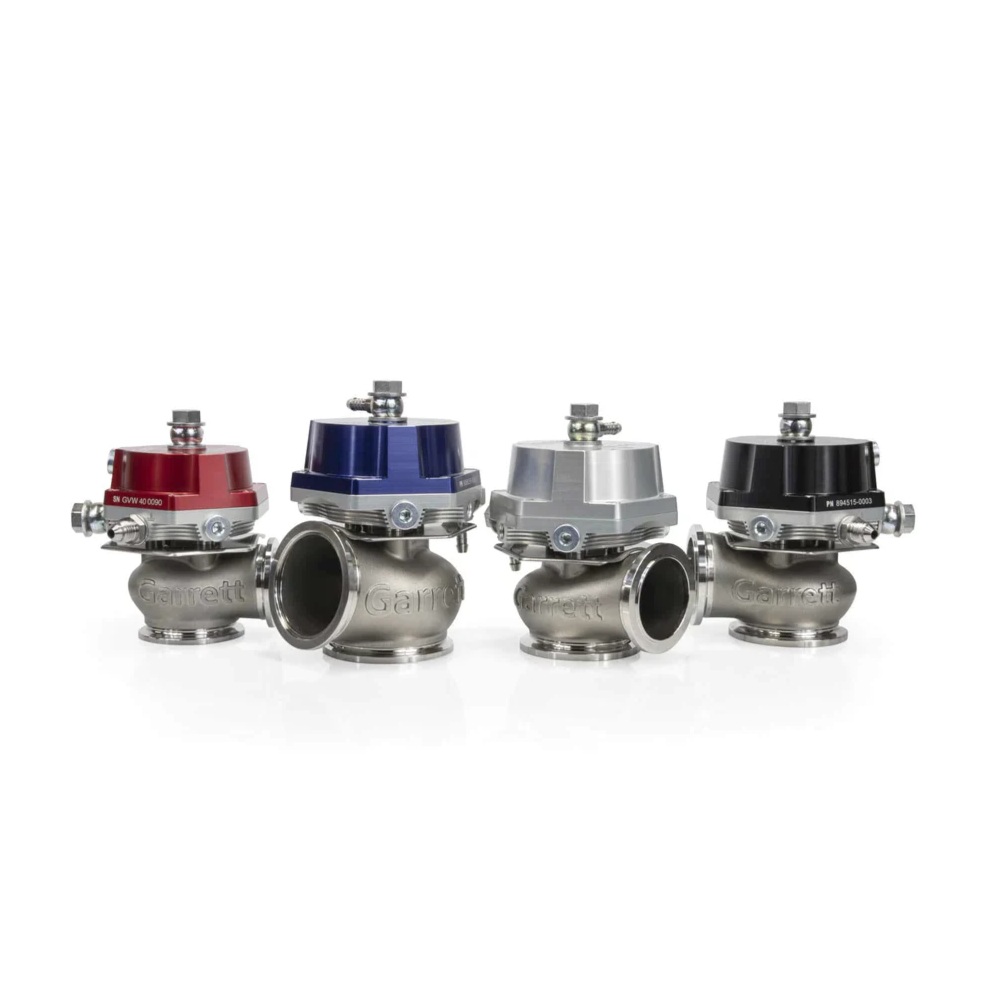

The external wastegate is a separate unit located between the exhaust manifold and the turbine.

• Advantages: Larger valve sizes allow for more precise pressure control, ideal for high-performance engines.
• Disadvantages: More complex installation, higher cost.

How to Adjust a Wastegate Valve

Proper adjustment is critical, as too low a pressure reduces performance, while too high a pressure risks damaging the engine.

• Spring Pressure Adjustment: The spring preload determines the pressure at which the valve opens. For instance, a 0.8 bar spring will open the valve at 0.8 bar boost pressure.
• Actuator Rod Fine-Tuning: Apply at least two turns of preload to ensure proper sealing.

Tuning and Optimization: Getting the Most Out of Your Wastegate Valve

During tuning, it’s essential to match the valve’s size and spring strength to the engine's performance.

• For racing applications, external wastegates and larger exhaust systems are preferred.
• During setup, ensure the wastegate valve is synchronized with the boost controller for optimal performance.

Common Issues and Maintenance

1. Spring Weakening:

Over time, the spring may lose its tension, causing the valve to open too early, reducing turbo efficiency.

2. Diaphragm Damage:

The vacuum actuator diaphragm can tear, leading to total wastegate failure.

3. Electronic Actuator Failure:

Malfunctioning electronic wastegates can drastically reduce performance and trigger error codes.

How to Choose a Wastegate Valve

When selecting a wastegate valve, consider:

• The engine’s power output and boost pressure.
• The valve’s size (e.g., a 38mm external wastegate is suitable for most street applications).
• Material quality, as stainless steel and ceramic coatings ensure greater durability.

Conclusion

Wastegate valves are essential for every turbocharged engine. Choosing the right type, setting it up correctly, and maintaining it ensures maximum performance and long engine life. Whether it’s for a street car or a race car, investing in a high-quality wastegate valve is always worth it, as it protects both the turbo and the engine from overpressure.

Turbo tuning? Remember, the wastegate valve is the key to success!
