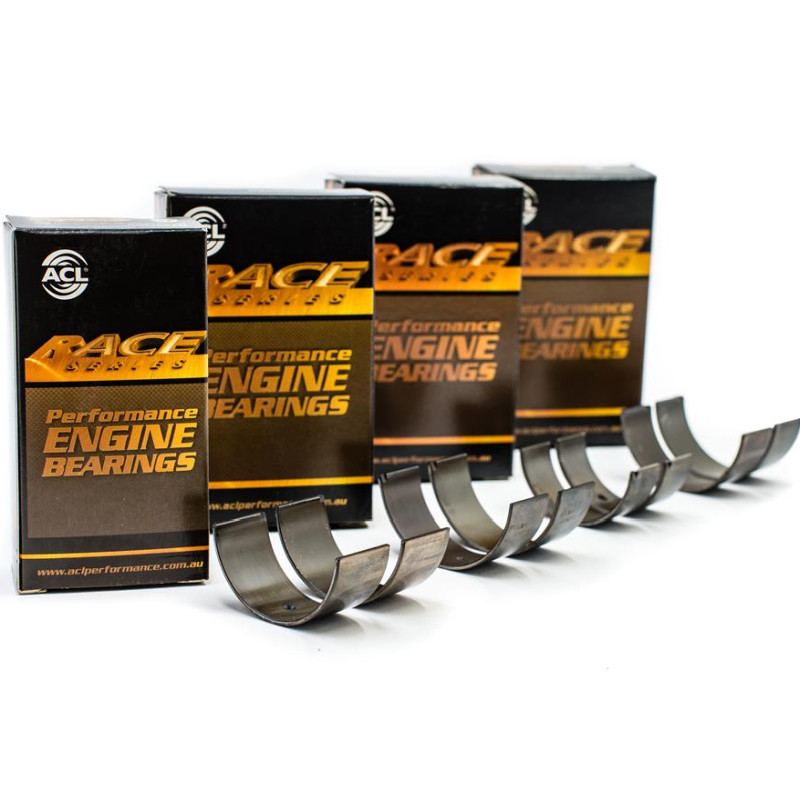

This ACL Race connecting rod bearing set is specifically engineered for Suzuki GSX-R1000 engines, delivering outstanding reliability and long-term performance, even at high RPM and under extreme loads. Optimized for racing, these ACL bearings feature a unique design to ensure stable operation, supporting the peak performance of Suzuki GSX-R1000 models.
Compatibility:
This bearing set fits perfectly with the Suzuki GSX-R1000, ensuring reliable performance under high-stress conditions, which significantly extends engine lifespan.
Manufacturer Part Numbers and Dimensions:
4B8430H Std
Tunnel Diameter Min: 38.000 mm, Max: 38.016 mm
Shaft Diameter Min: 34.976 mm, Max: 35.000 mm
Max Wall Thickness: 1.488 mm
Max Length: 15.00 mm
4B8430HX Std
Tunnel Diameter Min: 38.000 mm, Max: 38.016 mm
Shaft Diameter Min: 34.976 mm, Max: 35.000 mm
Max Wall Thickness: 1.475 mm
Max Length: 15.00 mm
4B8430H 0.025
4B8430H 0.25
Material and Special Features:
ACL Race bearings are constructed with a three-layer tri-metal design, utilizing a wear-resistant, high-strength copper-based alloy. A specialized, thin coating increases fatigue resistance and improves heat dissipation, ensuring engine stability. The flash-free backing (coating-free, for improved heat transfer) aids in thermal management and secure fitment, reducing the risk of overheating under heavy load. Additionally, bearing eccentricity enhances even oil film distribution, minimizing friction and maximizing engine performance.
Functions and Benefits:
High-strength coating for increased fatigue resistance
Hardened steel backing for stable fitment and improved support
Flash-free backing for better heat transfer
Increased eccentricity for optimal oil film distribution
This ACL connecting rod bearing set is an ideal choice for all Suzuki GSX-R1000 owners looking for long-term reliability and peak engine performance. For more details and available sizes, please refer to the ACL Race catalog here.
