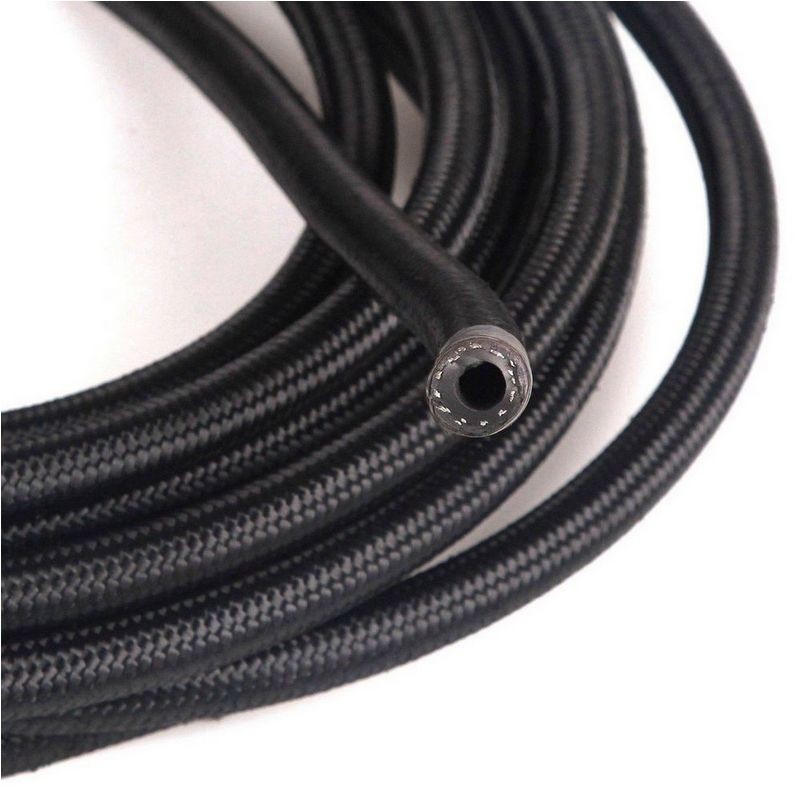

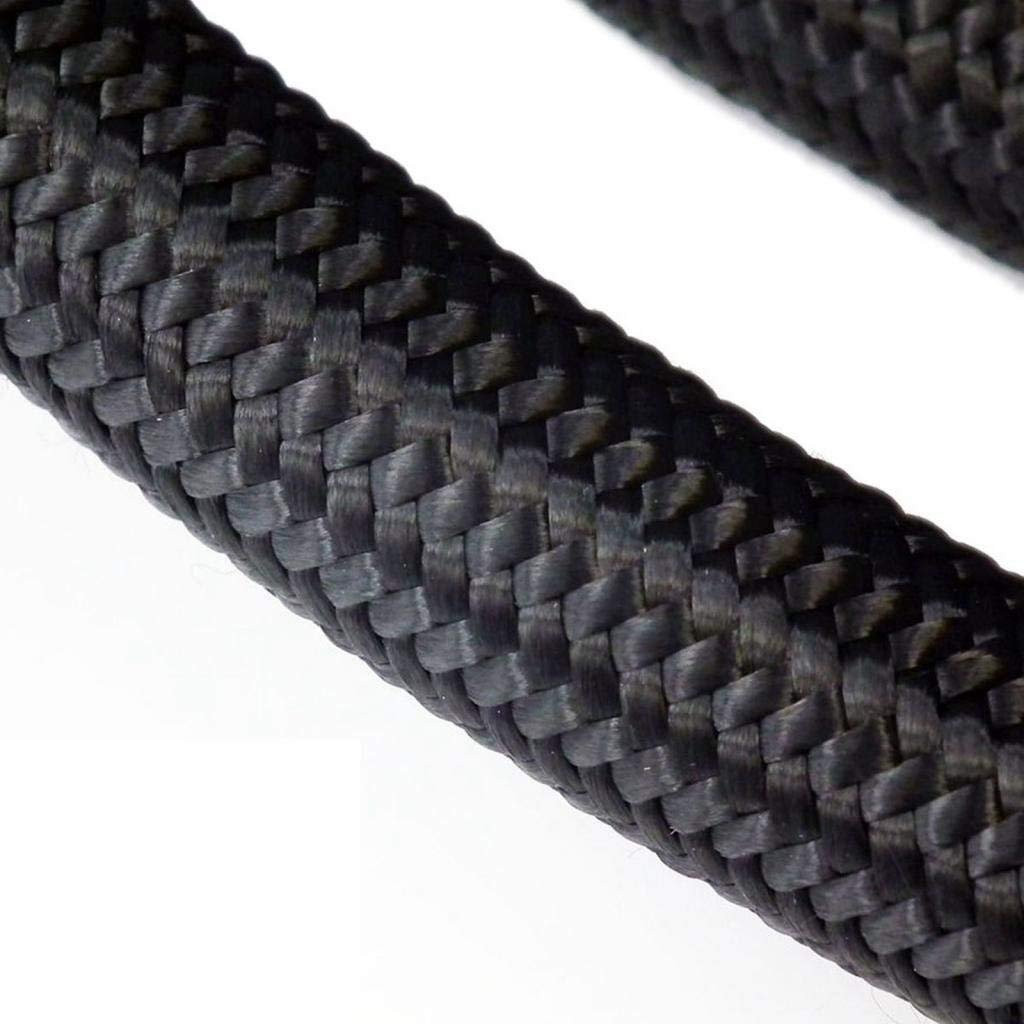

The AN4 high-pressure braided fuel hose is constructed with a nitrile inner core and reinforced with a durable stainless steel braid. The outer layer is made of lightweight, durable nylon fibers, offering excellent pressure resistance while reducing overall weight. This hose is compatible with various fluids, including transmission fluid, oil, race gas, vacuum, hydraulic fluid, diesel, and traditional fuels.
Specifications:
- Inner Diameter: 5.56 mm (0.22")
- Outer Diameter: 11.17 mm (0.44")
- Working Pressure: 500 PSI (35 bar)
- Burst Pressure: 2000 PSI (138 bar)
- Temperature Range: -40°F to +257°F (-40°C to +125°C)
- Minimum Bend Radius: 50.8 mm
- E85 Compatibility: Not recommended (use PTFE hoses for E85 applications)
Applications:
- Fuel supply and return systems
- Oil cooler lines
- Hydraulic fluid transportation
- Vacuum and turbo cooler lines
- Diesel and traditional fuels
Warning:
For ethanol and methanol-based fuels (E85), we recommend using hoses with a PTFE inner core for optimal reliability. The manufacturer suggests inspecting the inner wall of the hose annually for potential cracking caused by material dehydration.
