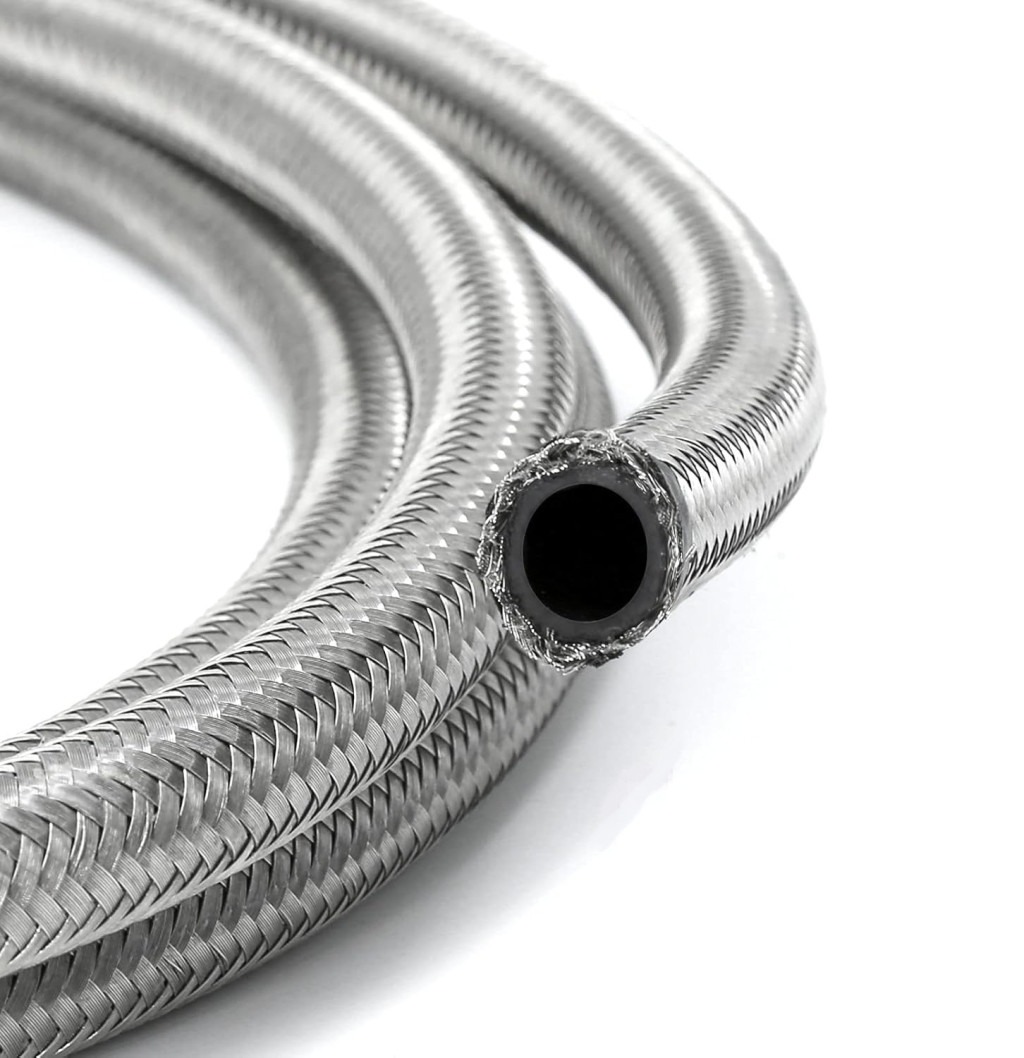

This AN8 high-pressure rubber hose features a synthetic-nitrile inner tube with a partial stainless steel reinforcement braid, covered by a heavy-duty full stainless steel outer braid. This construction ensures excellent flexibility, durability, and resistance to abrasion, making it ideal for extreme applications.
Key Specifications:
- Working Pressure: 1000 psi (69 bar)
- Burst Pressure: 6000 psi (408 bar)
- Inner Diameter: 11.12 mm
- Outer Diameter: 16.28 mm
- Temperature Range: -40°F to 257°F (-40°C to +125°C)
Applications:
- Fuel supply and return lines
- Motor oil and power steering fluid transport
- Coolant and air systems
Price listed is for 1 meter, with custom lengths available. Not suitable for E85 fuels; for such applications, PTFE hoses are recommended.
