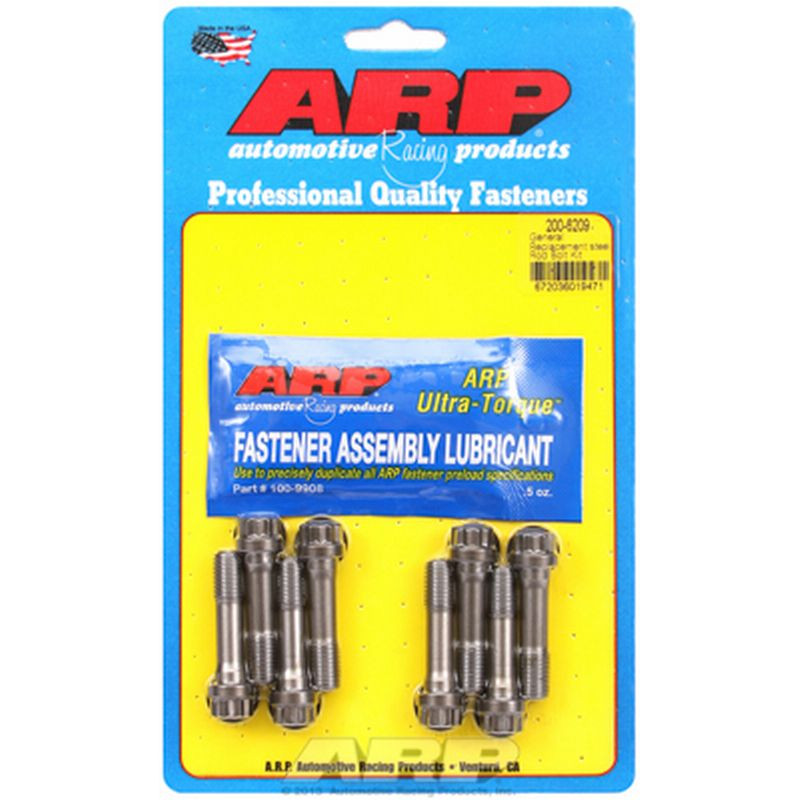

This ARP 3/8" connecting rod bolt kit is crafted from premium ARP2000 material, offering high tensile strength and exceptional durability, making it ideal for high-performance engines and racing applications. These bolts are specifically designed to meet the strictest requirements, ensuring optimal fastening of the connecting rods.

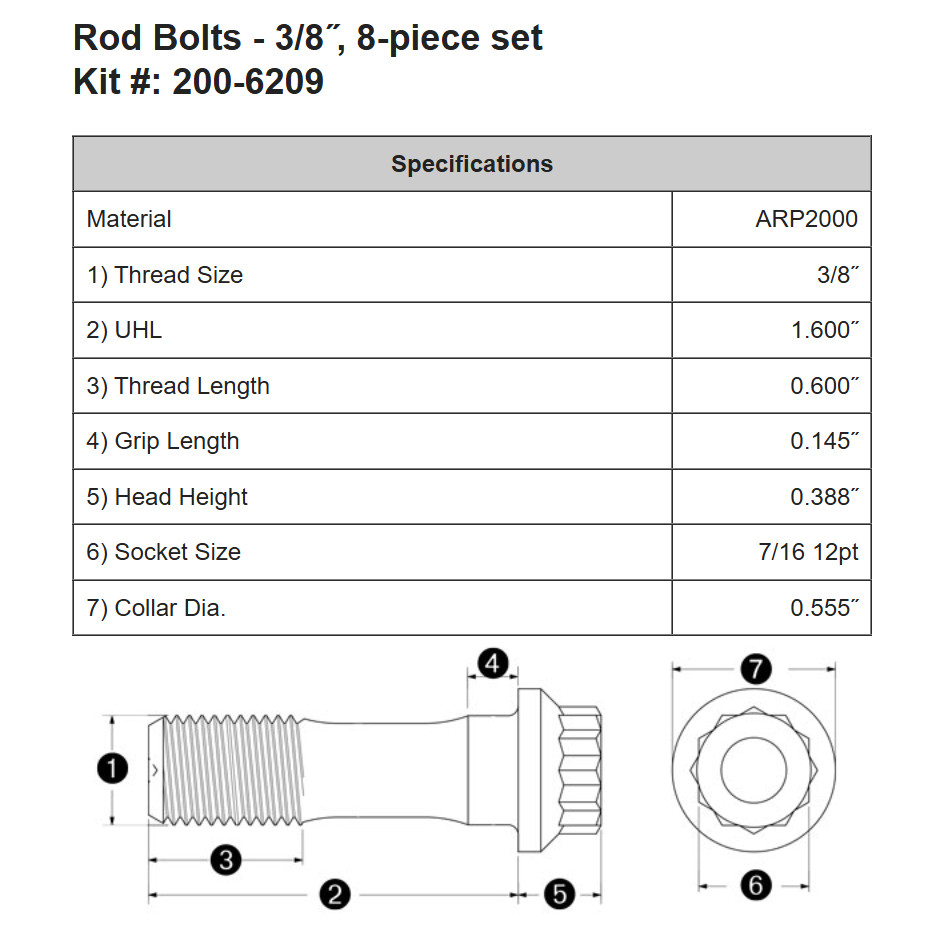

Technical Specifications:
- Material: ARP2000
- Thread Size: 3/8" (approximately 9.53 mm)
- Overall Length (UHL): 1.600" = 40.64 mm
- Thread Length: 0.600" = 15.24 mm
- Grip Length: 0.145" = 3.68 mm
- Head Height: 0.388" = 9.86 mm
- Socket Size: 7/16 (approximately 11.11 mm), 12-point
- Collar Diameter: 0.555" = 14.1 mm
Torque and Stretch Values:
- Stretch: 0.0055 - 0.0060 inch (approximately 0.14 - 0.15 mm)
- Torque: 55 ft-lbs = 75 Nm (using ARP Ultra-Torque Fastener Assembly Lubricant)
Note: The torque and stretch values provided by ARP serve as general guidelines. For optimal values, please consult the connecting rod manufacturer, as these values may vary for aftermarket rods.
This bolt kit is an excellent choice for those aiming for maximum performance and safety in racing environments.
