ARP Bolts in Motorsport: Applications, Types, and Specifications

ARP Bolts in Motorsports: Applications, Types, and Specifications

Why Use ARP Bolts?

ARP bolts represent the highest quality in motorsports and engine tuning. They are made from high-grade materials and undergo strict manufacturing and heat treatment processes to withstand the greatest stresses. By using ARP bolts, you can significantly improve engine performance and reliability, reducing the risk of failures and the need for maintenance.

ARP Materials and Specifications

8740 Chrome Moly Steel
Properties: Excellent tensile strength (approx. 190,000-200,000 psi), good fatigue resistance, and corrosion resistance.
Usage: Primarily used for connecting rod bolts, main studs, flexplate, and flywheel bolts in high-performance and racing engines.

ARP2000
Properties: Higher tensile strength (approx. 220,000 psi), excellent fatigue resistance, and heat resistance.
Usage: Connecting rod bolts, head bolts, head studs, and camshaft bolts for high-stress applications such as racing engines.

L19
Properties: Extreme tensile strength (approx. 260,000 psi), requires special handling to avoid hydrogen embrittlement and corrosion.
Usage: Used in the most demanding racing engines, where extreme stresses and temperatures are present.

Custom Age 625+
Properties: Exceptional tensile strength (approx. 260,000-280,000 psi), excellent corrosion and heat resistance.
Usage: Applied in the highest performance engines where maximum reliability and durability are required.

ARP Stainless Steel
Properties: 180,000 psi tensile strength, excellent corrosion resistance.
Usage: General engine components such as water pump, oil pan, and valve cover bolts, especially in applications where corrosion prevention is important.

Inconel 718
Properties: High tensile strength and excellent heat resistance, particularly resistant to corrosion and oxidation at high temperatures.
Usage: Extreme temperature applications, such as turbocharged engines and racing engine exhaust systems.

ARP3.5
Properties: ARP 3.5 is a special alloy providing exceptional tensile strength and reliability under extreme stress, with excellent fatigue resistance.
Usage: Used in high-performance and racing engines where reliability and performance must be maintained under heavy loads.

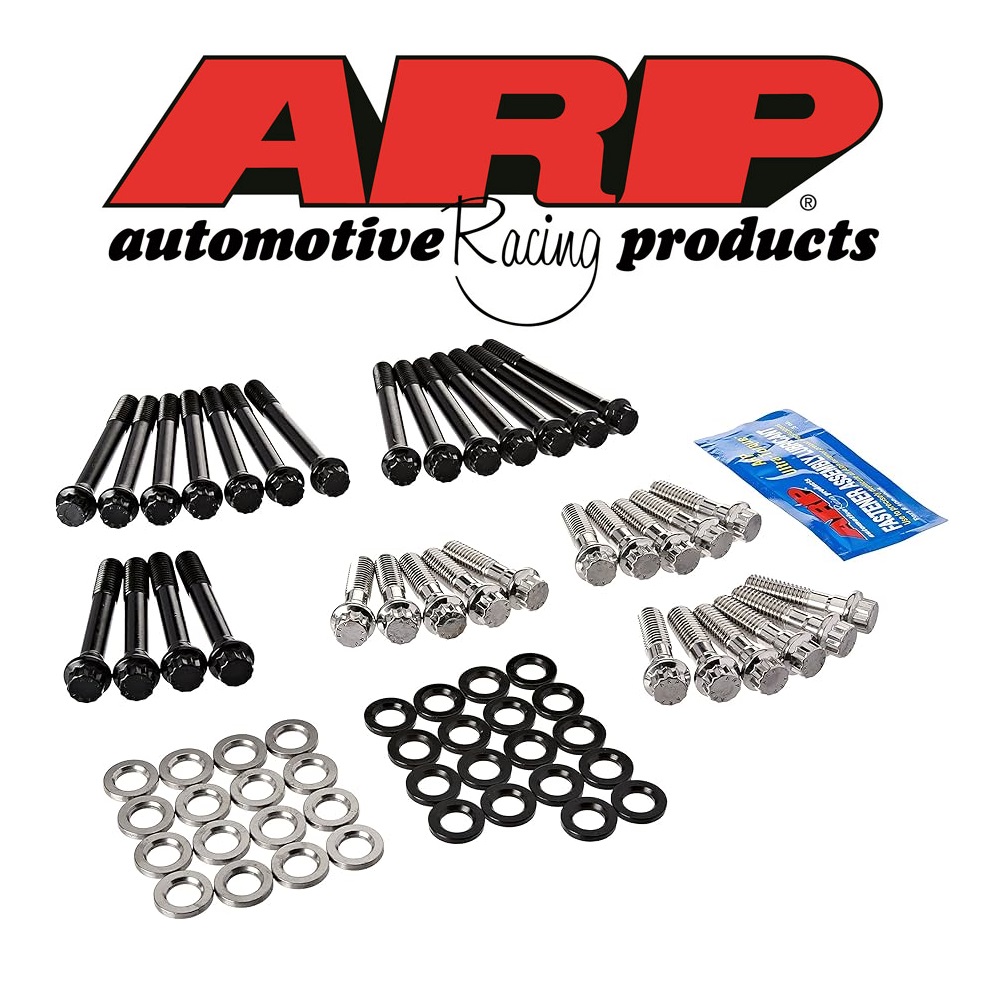

ARP Bolt Types and Benefits

Connecting Rod Bolts (Rod Bolts)
Material: 8740 Chrome Moly Steel or ARP2000
Specification: 200,000 psi tensile strength for 8740 Chrome Moly Steel, 220,000 psi for ARP2000.
Benefits: Ensure a solid and secure connection between the connecting rods and crankshaft. Highly resistant to fatigue and heavy loads, thus increasing the engine's lifespan and performance.

Head Bolts
Material: ARP2000 or Custom Age 625+
Specification: 220,000 psi tensile strength for ARP2000, 260,000-280,000 psi for Custom Age 625+.
Benefits: Their high tensile strength ensures a tight seal between the cylinder head and engine block, minimizing the risk of head gasket failures. They evenly distribute pressure, crucial for high-performance engines.

Head Studs
Material: ARP2000 or Custom Age 625+
Specification: The ARP2000 and Custom Age 625+ materials have similar properties to those used in head bolts.
Benefits: Allow more precise and reliable attachment of the cylinder head to the block, reducing the risk of head gasket failures and making them easier to reuse during maintenance.

Main Studs
Material: 8740 Chrome Moly Steel or ARP2000
Specification: 200,000 psi tensile strength for 8740 Chrome Moly Steel, 220,000 psi for ARP2000.
Benefits: Secure the main bearing caps to the engine block, ensuring stability and reliability of the engine’s bottom end, reducing vibration, and increasing engine lifespan.

Flexplate and Flywheel Bolts
Material: 8740 Chrome Moly Steel
Specification: 200,000 psi tensile strength for Pro Series bolts, 180,000 psi for High Performance bolts.
Benefits: These bolts ensure stable attachment of the flexplate and flywheel, increasing drivetrain reliability and performance.

Rocker Arm Studs
Material: 8740 Chrome Moly Steel
Specification: 180,000 psi tensile strength.
Benefits: These bolts secure the rocker arm, reducing vibration during valve adjustment, increasing engine lifespan.

Cam Bolts
Material: 8740 Chrome Moly Steel or ARP2000
Specification: 180,000 psi tensile strength for High Performance bolts, 200,000 psi for Pro Series bolts.
Benefits: Increase camshaft preload and ensure precise timing, reducing vibrations during valve adjustments. These bolts help maintain camshaft stability, especially in high-performance engines.

Accessory Studs
Material: Stainless Steel or 8740 Chrome Moly Steel
Specification: 180,000 psi tensile strength.
Benefits: Used to secure engine accessories such as air filters, alternators, fuel pumps, and other components. These bolts ensure reliable attachment, resisting corrosion and mechanical stress.

Valve Cover Bolts
Material: Stainless Steel or 8740 Chrome Moly Steel
Specification: 170,000 psi tensile strength.
Benefits: Designed to secure valve covers, especially in racing engines where high temperatures and pressure are present. These bolts provide a reliable seal, minimizing the risk of leaks.

Summary

Using ARP bolts offers significant advantages for all types of engines, especially high-performance and racing engines. They are made from premium materials that provide high tensile strength, corrosion resistance, and heat resistance. Various bolt and stud types are designed for specific applications to maximize engine reliability and performance.
