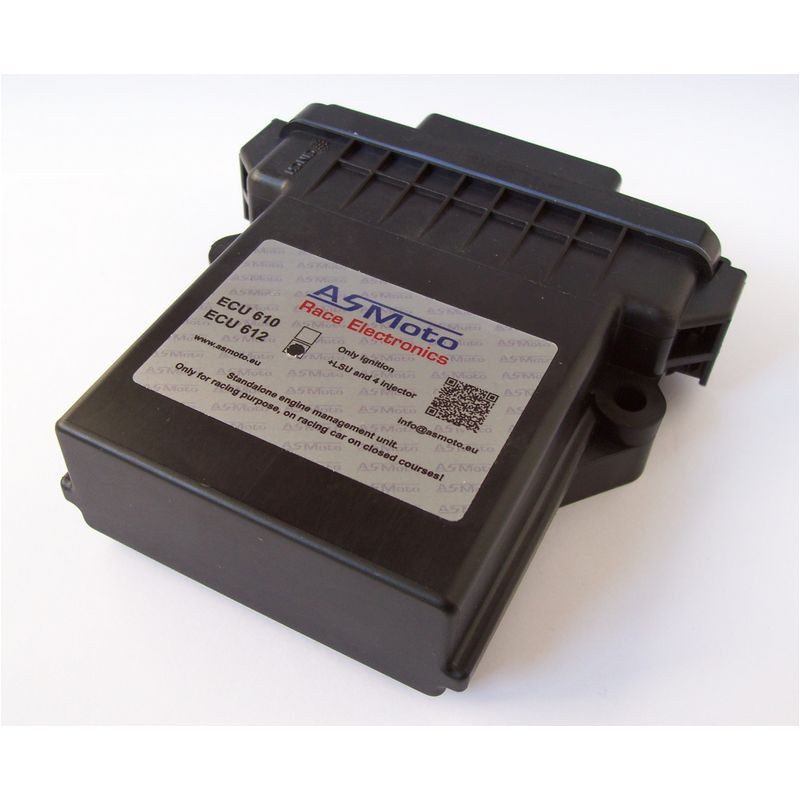

The ASMoto ECU 612 Engine Controller is a modern, highly programmable unit specifically designed for 4-cylinder injection engines. Ideal for motorsport and tuning applications, it provides precise control and unparalleled customization options.
Key Features:
- 2 ignition outputs: Selectable logic or power output via software.
- Knock sensor input: Cylinder-specific knock correction.
- 7 analog/logic inputs: Supports a wide range of sensors.
- Crankshaft signal: Hall or inductive sensing supported.
- Camshaft signal: Hall-based (optional for operation).
- 4 freely programmable outputs: For cooling fan, RPM signal, fuel pump control, etc., with one PWM option (e.g., boost control, cam control) or Iso 14230-4 (EOBD K-line).
- 1 CAN bus: For seamless integration with other systems.
- 4 engine maps: Store different engine setups.
- Lambda sensor support: LSU 4.2 or 4.9 wideband oxygen sensors supported.
- 4 injector outputs: Optimal fuel management.
Important: Installation must be performed by a specialist, and the system requires an ASMoto USB-CAN Interface for proper programming.
