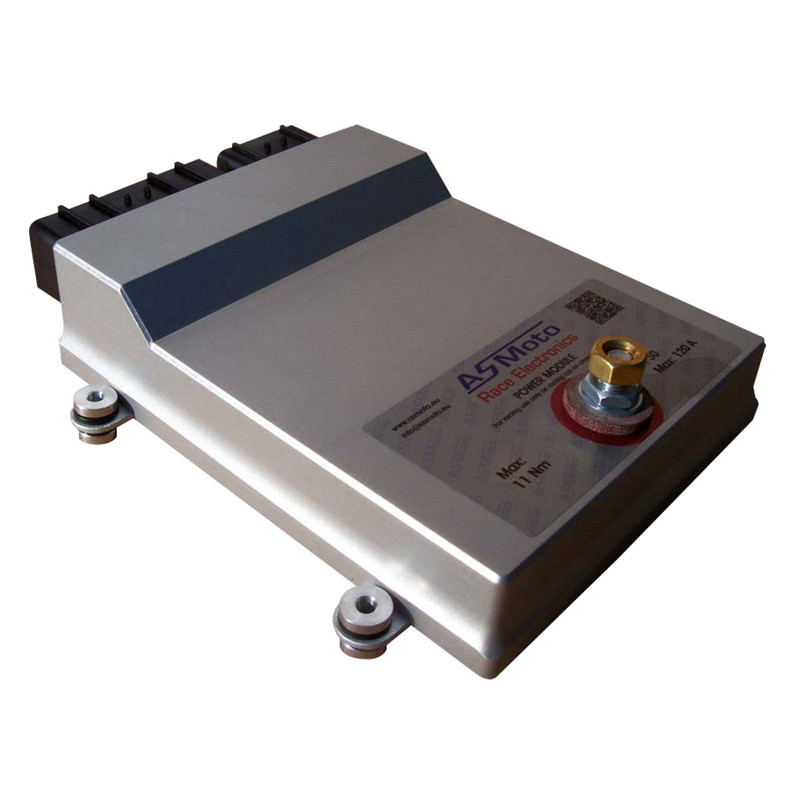

The ASMoto PowerModule is a cutting-edge, fully programmable power distribution system designed to streamline wiring in race cars. It simplifies the wiring process, reduces complexity, and ensures precise and safe power distribution.
Key Features:
- 18 high-current and 8 low-current outputs: Safely powers multiple components.
- Programmable functions: Functions can be easily modified via software.
- Compact wiring: Results in smaller, more manageable harnesses.
Accessories:
- ASMoto WSM Module:
- Wireless connection to the PowerModule.
- Replaces column stalk switches and associated wiring.
- 8 customizable buttons for functions like turn signals, lighting, ALS, and launch control.
- ASMoto Membrane Panel:
- 11 or 14 programmable buttons for status and error indications.
- Customizable icons (choose from 70 symbols).
Additional Features:
- 2 CAN buses: Compatible with most CAN-based ECUs, such as MoTeC, DTA, and Syvecs.
- Supports electronic isolators, such as Cartec Battery Isolators.
- Enables control of systems like fuel pumps and cooling fans without additional relays or wiring.
Important: Installation must be carried out by a specialist, and the system requires the ASMoto USB-CAN Interface for programming.
For more information, visit ASMoto.eu or click here!
