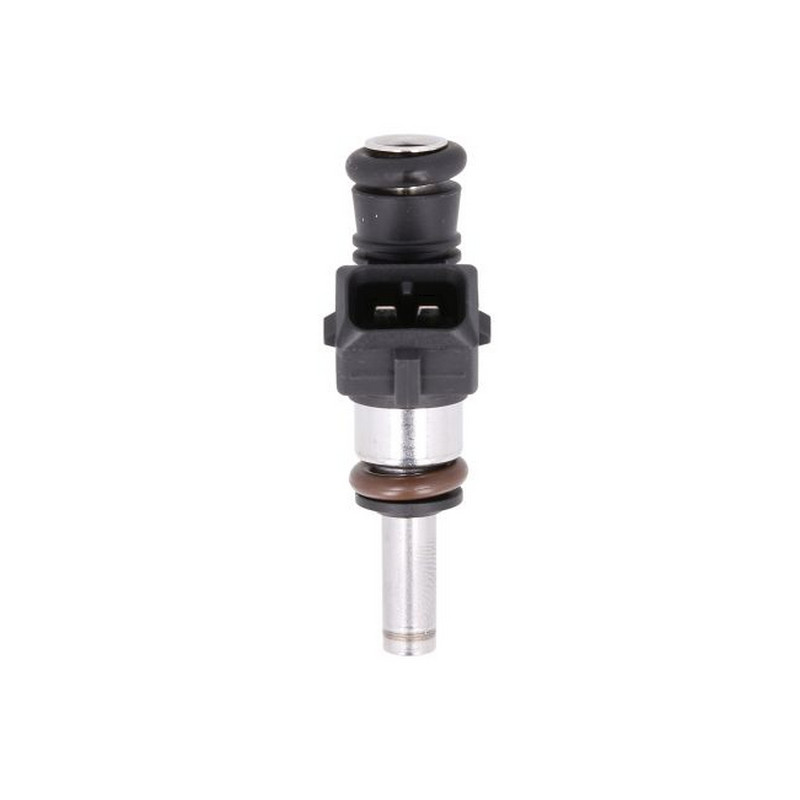

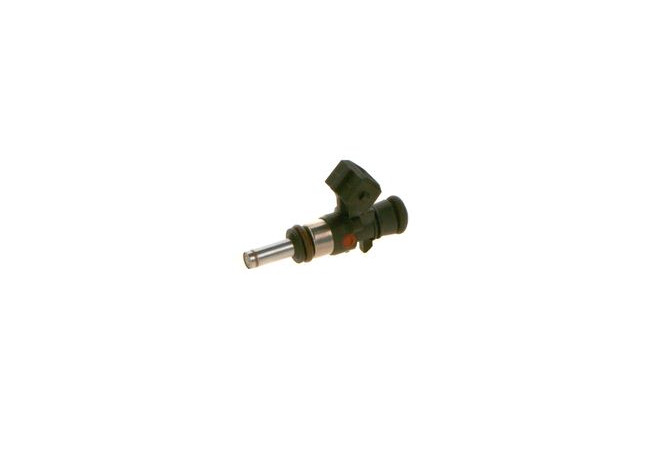

The BOSCH EV14 injector represents the latest in fuel injection technology, designed for motorsport applications. Its high-impedance (12.5 Ohm) design ensures broad compatibility with various engine management systems.
Key Features:
- Flow Rate: 980 cm³/min at 3 bar pressure
- Upper O-Ring Connection: 14 mm (BOSCH EV14)
- Electrical Connector: EV1
- Fuel Compatibility: E85
Performance: Capable of supporting up to ~550 horsepower (in 4-cylinder engines) or ~950 horsepower (in 6-cylinder engines).
Technical Information:
- Impedance: 12.5 Ohm
- Maximum System Pressure: 8 bar
- Weight: ≤30 g
- Installation Length: 33.6 mm
- Operating Temperature: -40°C to 110°C
- Permissible Fuel Temperatures: ≤70°C
- Spray Angle: 15° to 85°
- Spray Type: Conical spray or 2-spray
Compatibility: Due to its compact size and standard connections, the BOSCH EV14 injector is widely applicable in various engines and vehicles. It is particularly recommended for high-performance and racing applications where the use of E85 fuel is planned.
Note: While the injector is E85 compatible, if methanol is used, it is advisable to flush the system with regular fuel afterward to prevent corrosion. The injectors should not be in contact with methanol for extended periods.
