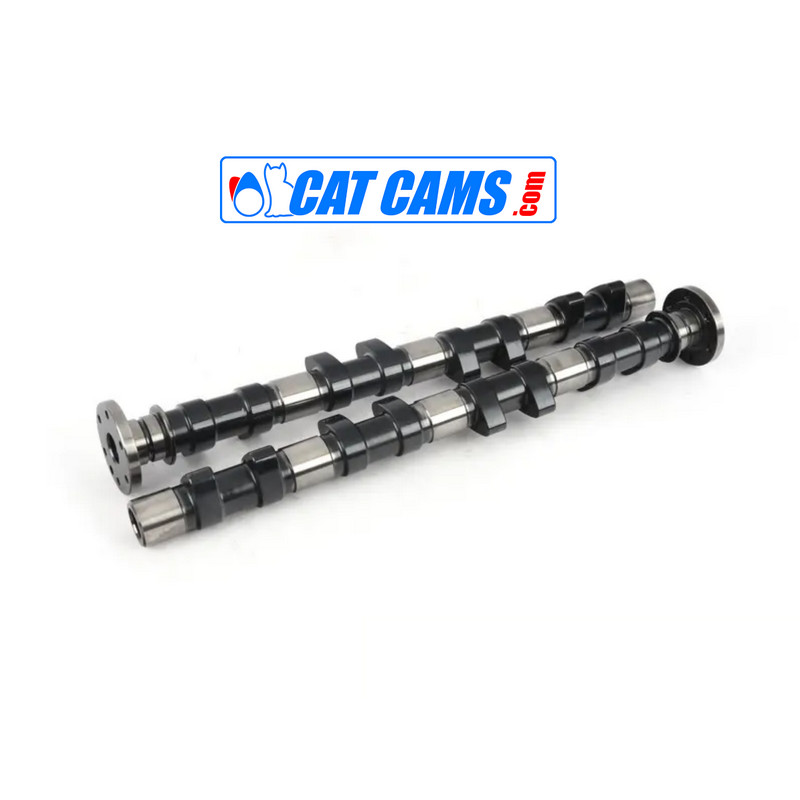

Cat Cams camshafts are known for their high-quality engineering and durability, making them a standout choice in motorsport. This camshaft is specifically designed for the Suzuki G13B 1.3L 16V DOHC (DTH/DTH) engine to maximize performance under racing conditions. Made from steel billet, it offers superior durability and precision for demanding applications.
Technical Specifications:
- Engine Compatibility: Suzuki G13B 1.3L 16V DOHC
- Application: Tarmac rally and race
- Opening Duration (0.1 mm): 267° (intake) / 261° (exhaust)
- Opening Duration (1.0 mm): 238° (intake) / 233° (exhaust)
- Valve Lift:
- Intake: 12.00 mm
- Exhaust: 11.30 mm
- Valve Clearance at TDC:
- Intake: 3.00 mm
- Exhaust: 2.60 mm
- Max Spring Load: 82 kg @ 14.0 mm
- Sprocket: OEM compatibility
Remarks:
- Steel billet camshafts.
- For competition use, ensure the following:
- The camshaft moves smoothly in the cylinder head.
- Minimum clearance between valve seal and retainer at full lift is 0.6 mm.
- Minimum valve spring travel of 1.0 mm at full lift is provided.
- Clearance between valve and piston must be at least 1.5 mm.
- Use lash caps to adjust valve clearance.
This camshaft is a perfect choice for optimizing the performance of the Suzuki G13B engine in tarmac rally and race conditions.
