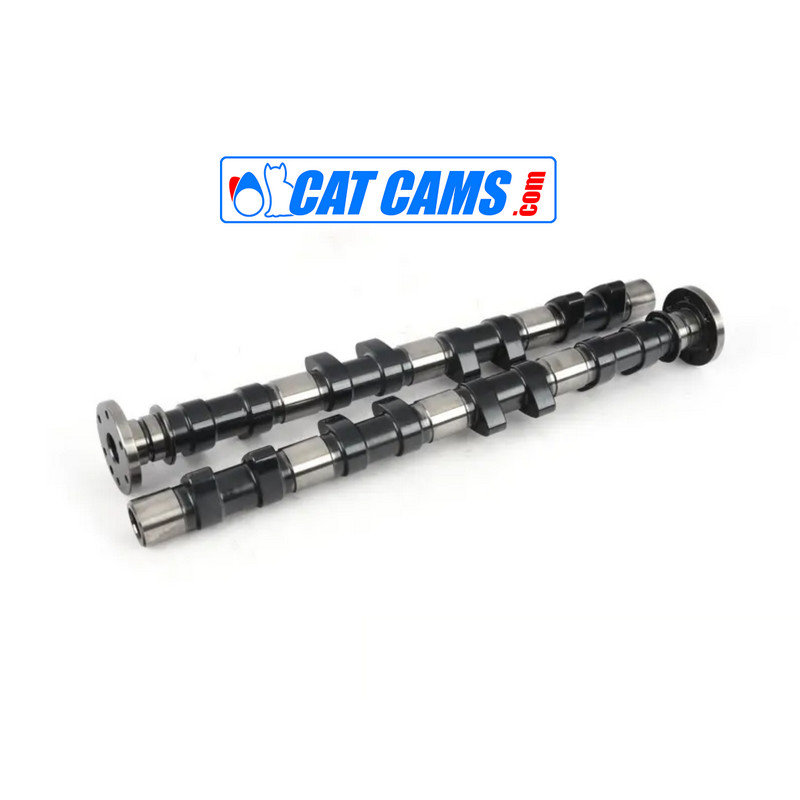

Cat Cams camshafts are renowned for their exceptional engineering and reliability in motorsport applications. This model, specifically designed for the Suzuki G13B 1.3L 16V DOHC (DTH/DTH) engine, provides optimized valve timing and enhanced performance. Made from steel billet, this camshaft is built for durability and reliability in demanding dirt track and pro street environments.
Technical Specifications:
- Engine Compatibility: Suzuki G13B 1.3L 16V DOHC
- Application: Pro street and dirt track
- Opening Duration (0.1 mm): 278° (intake) / 278° (exhaust)
- Opening Duration (1.0 mm): 238° (intake) / 238° (exhaust)
- Valve Lift:
- Intake: 11.20 mm
- Exhaust: 11.20 mm
- Valve Clearance at TDC:
- Intake: 2.35 mm
- Exhaust: 2.30 mm
- Max Spring Load: 82 kg @ 14.0 mm
- Sprocket: OEM compatibility
Remarks:
- Steel billet camshafts.
- For competition use, ensure the following:
- The camshaft moves smoothly in the cylinder head.
- Minimum clearance between valve seal and retainer at full lift is 0.6 mm.
- Minimum valve spring travel of 1.0 mm at full lift is provided.
- Clearance between valve and piston must be at least 1.5 mm.
- Adjust exhaust timing 5-15° before TDC, intake after TDC.
This camshaft is the perfect solution for maximizing the performance of the Suzuki G13B engine in dirt track and pro street applications.
