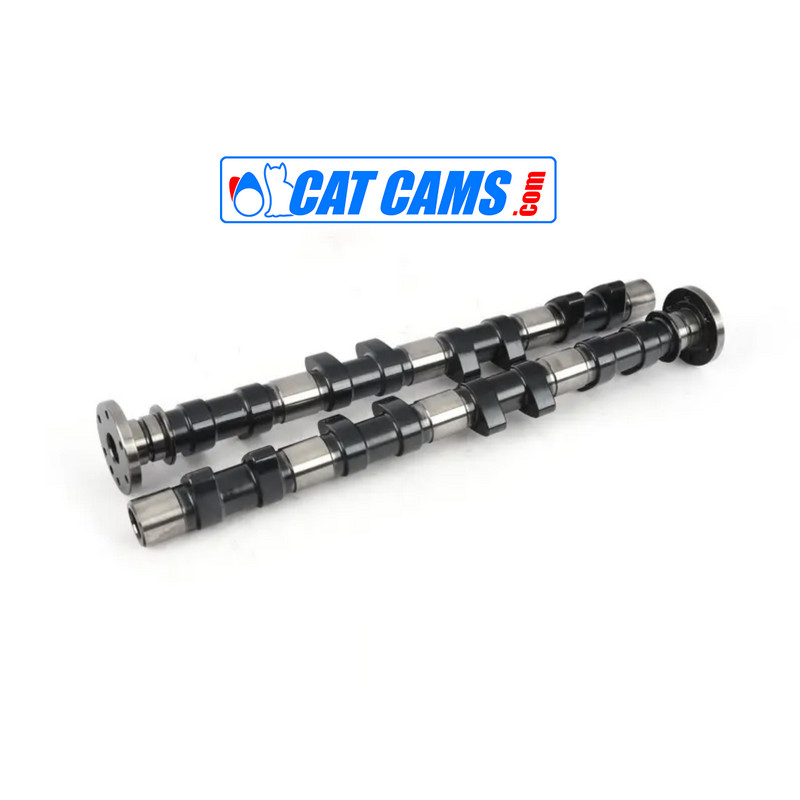

Cat Cams camshafts are renowned for their exceptional engineering and reliability in motorsport applications. This model, specifically designed for the Suzuki G13B 1.3L 16V DOHC (DTH/DTH) engine, provides optimized valve timing and enhanced performance. Made from steel billet, this camshaft is built for durability and reliability in demanding dirt track and pro street environments.
Technical Specifications:
- Engine Compatibility: Suzuki G13B 1.3L 16V DOHC
- Application: Pro street and dirt track
- Opening Duration (0.1 mm): 261° (intake) / 257° (exhaust)
- Opening Duration (1.0 mm): 233° (intake) / 221° (exhaust)
- Valve Lift:
- Intake: 11.30 mm
- Exhaust: 10.30 mm
- Valve Clearance at TDC:
- Intake: 2.30 mm
- Exhaust: 1.50 mm
- Max Spring Load: 82 kg @ 14.0 mm
- Sprocket: OEM compatibility
Remarks:
- Steel billet camshafts.
- For competition use, ensure the following:
- The camshaft moves smoothly in the cylinder head.
- Minimum clearance between valve seal and retainer at full lift is 0.6 mm.
- Minimum valve spring travel of 1.0 mm at full lift is provided.
- Clearance between valve and piston must be at least 1.5 mm.
- Adjust exhaust timing 5-15° before TDC, intake after TDC.
- Valve clearance must be adjusted using mechanical lash caps.
This camshaft is the perfect solution for maximizing the performance of the Suzuki G13B engine in dirt track and pro street applications.
