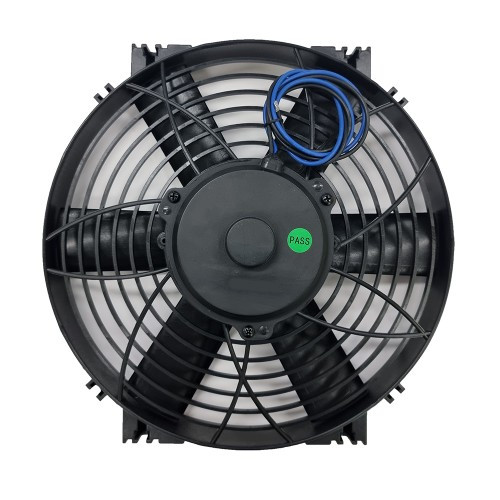

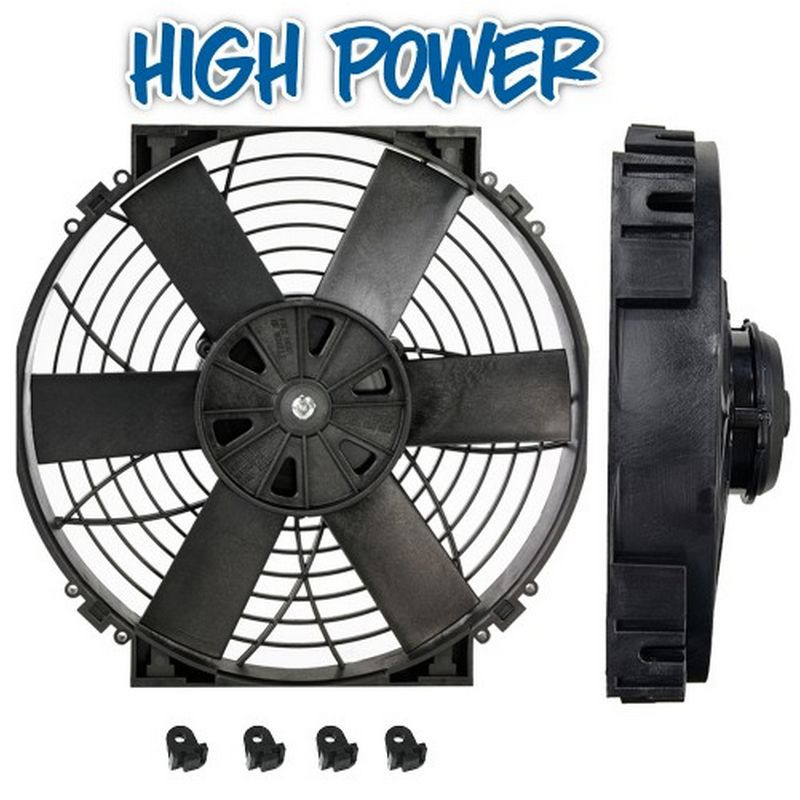

The Davies Craig 10-inch (25 cm) High Power Thermatic® Cooling Fan is a high-performance, universal electric fan designed for radiator, air conditioner condenser, and transmission or engine oil cooler applications. With its innovative design, the fan can operate in both pusher and puller modes by reversing the blades and polarity.
Key Features:
- Airflow: Up to 1000 CFM (1698 m³/óra) for superior cooling.
- Energy Efficiency: Improves fuel economy and engine performance.
- Temperature Management: Reduces the risk of engine overheating.
- Bi-Directional Airflow: Reversible blades and polarity for pusher or puller operation.
- Low Profile: Compact design for tight installation spaces.
Specifications:
- Airflow: 1000 CFM (1698 m³/hr)
- Maximum Current Draw: 19A (12V)

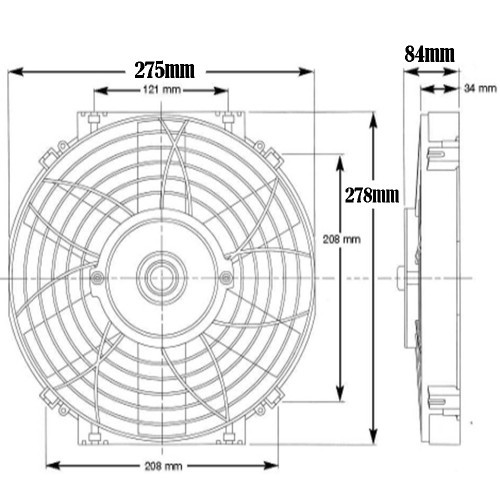

- Dimensions:
- Height: 278 mm
- Width: 275 mm
- Depth: 84 mm
- Weight: 1.5 kg
- Motor Type: Brushed or long-life brushless motor (optional)
Kit Contents:
- 10-inch High Power Thermatic® Fan (12V)
- Motor, fan blade, shroud, and mounting feet
- Installation guide
Optional Accessories:
- Universal Fan Fitting Kit (#0579 or #0578)
- Thermatic® Fan Switches (available in mechanical and digital versions)
Applications:
- Radiator cooling fan
- Air conditioner condenser fan
- Oil cooler fan
