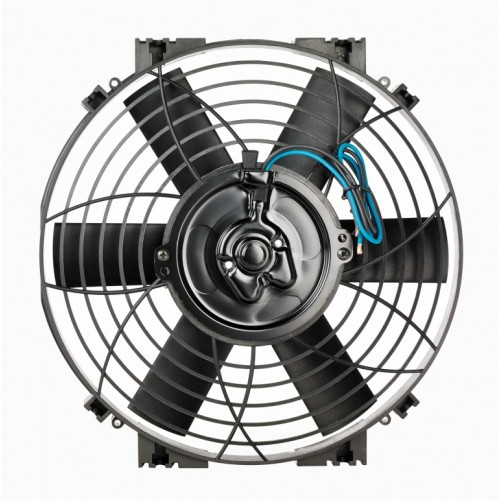

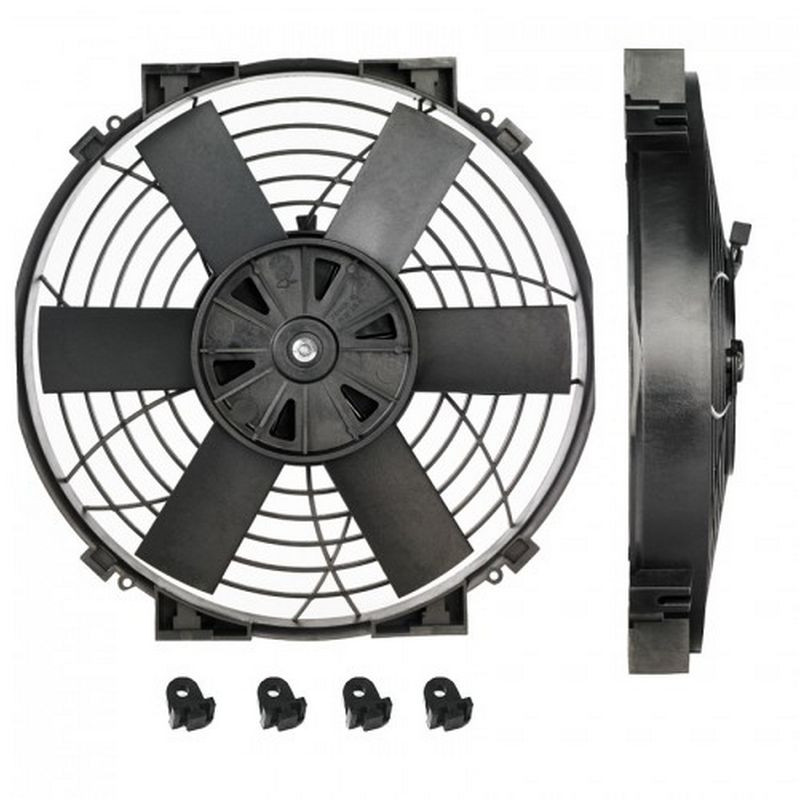

The Davies Craig 10-inch (25 cm) Thermatic® Slimline Cooling Fan (12V) is a high-performance, low-profile electric fan designed for efficient cooling in radiators, air conditioner condensers, and oil coolers.
This fan can operate in both pusher and puller modes by reversing the blades and polarity, making it versatile for a variety of applications. Its slimline design, with a depth of only 56 mm, ensures easy installation in confined spaces.
Key Features:
- Airflow: Up to 696 CFM (1182 m³/hr) for effective cooling.
- Energy Efficiency: Enhances fuel economy and engine performance.
- Bi-Directional Airflow: Reversible blades and polarity for pusher or puller operation.
- Compact Design: Slim profile with a depth of only 56 mm.
- Motor Options: Available with brushed or long-life brushless motor.
Specifications:
- Airflow: 696 CFM (1182 m³/hr)
- Maximum Current Draw: 7A (12V)

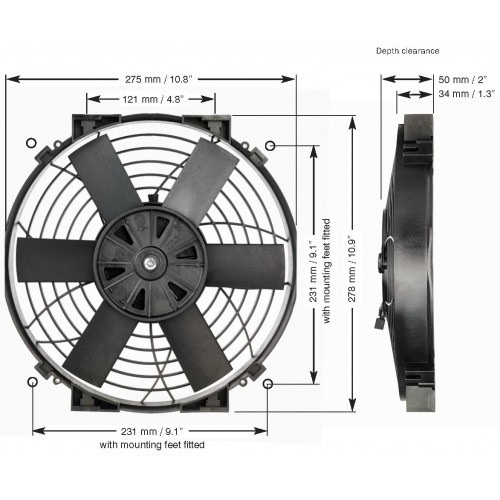

- Dimensions:
- Height: 278 mm
- Width: 275 mm
- Depth: 56 mm
- Weight: 1.13 kg
- Operating Voltage: 12V DC
Kit Contents:
- 10-inch Slimline Thermatic® Fan (12V)
- Fan blade, motor, shroud, and mounting feet
- Installation guide
Optional Accessories:
- Universal Fan Fitting Kit (#0579 or #0578)
- Thermatic® Fan Switches (available in mechanical and digital versions)
Applications:
- Radiator cooling fan
- Air conditioner condenser fan
- Oil cooler fan
