The Davies Craig 12-inch (30 cm) High Power Thermatic® Cooling Fan (12V) is a premium-quality, high-performance fan designed for radiator, air conditioner condenser, and oil cooler applications.
The fan features a reversible blade and polarity for pusher or puller operation, allowing for versatile installation. Its compact design and impressive airflow capabilities make it an ideal choice for demanding cooling needs.
Key Features:
- Airflow: Up to 1250 CFM (2124 m³/hr) for powerful cooling.
- Energy Efficiency: Improves fuel economy and enhances engine performance.
- Bi-Directional Airflow: Usable in both pusher and puller configurations.

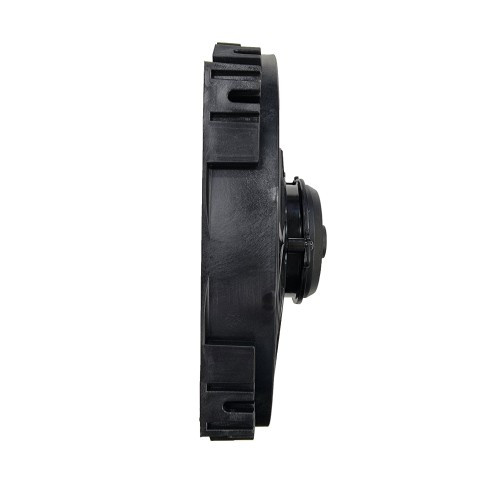

- Compact Design: Just 86 mm deep, ideal for tight spaces.
- Motor Options: Available with brushed or long-life brushless motor (DK0127).
Specifications:
- Airflow: 1250 CFM (2124 m³/hr)
- Maximum Current Draw: 22A (12V)

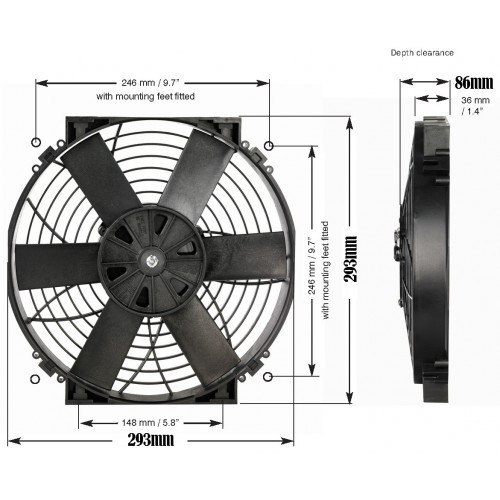

- Dimensions:
- Height: 293 mm
- Width: 293 mm
- Depth: 86 mm
- Weight: 1.6 kg
- Operating Voltage: 12V DC
Kit Contents:
- 12-inch High Power Thermatic® Fan (12V)
- Motor, fan blade, shroud, and mounting feet
- Installation guide
Optional Accessories:
- Universal Fan Fitting Kit (#0579 or #0578)
- Thermatic® Fan Switches (available in mechanical and digital versions)
Applications:
- Radiator cooling fan
- Air conditioner condenser fan
- Oil cooler fan
