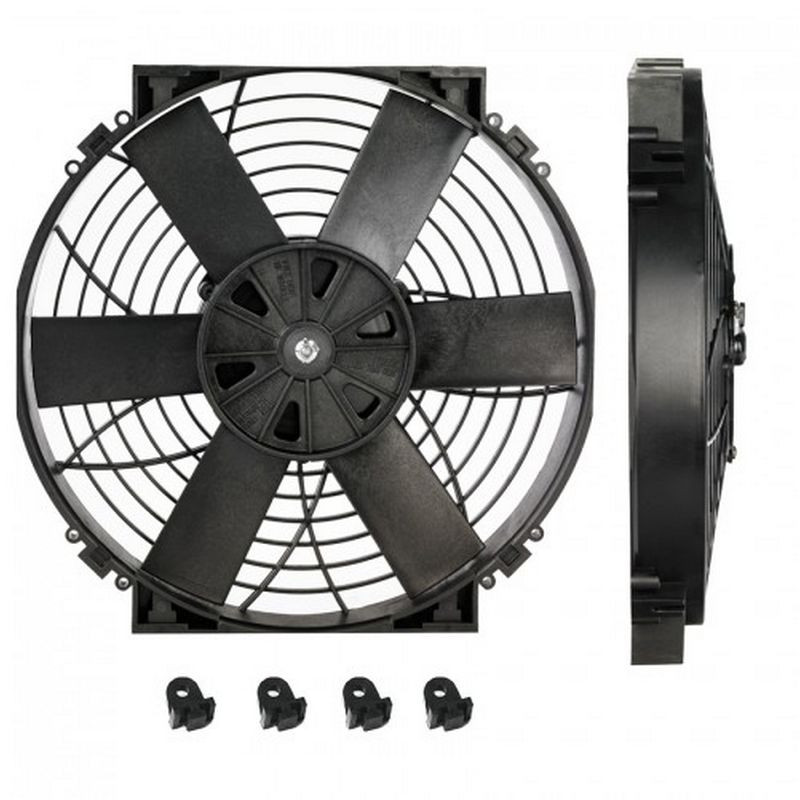

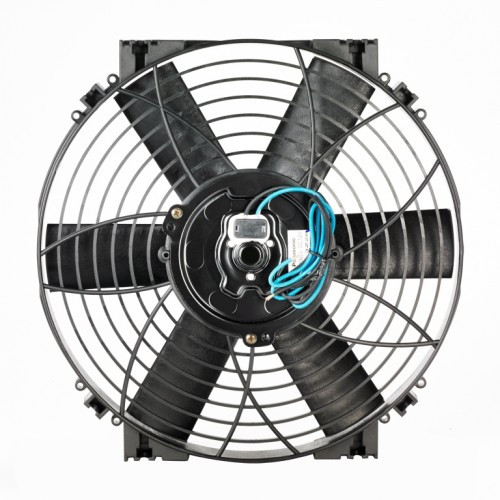

The Davies Craig 12-inch (30 cm) Thermatic® Cooling Fan (12V) is a reliable, high-performance cooling solution for radiators, air conditioner condensers, and oil coolers.
With its reversible blade and polarity design, the fan can be configured for pusher or puller operation, offering flexibility for different cooling applications. Its compact design ensures easy installation in tight spaces, while the powerful airflow guarantees efficient cooling.
Key Features:
- Airflow: Up to 847 CFM (1434 m³/hr) for effective cooling.
- Bi-Directional Airflow: Suitable for both pusher and puller configurations.
- Energy Efficiency: Enhances fuel economy and engine performance.
- Compact Design: 58 mm deep, perfect for tight spaces.
- Motor Options: Available with brushed or long-life brushless motor.
Specifications:
- Airflow: 847 CFM (1434 m³/hr)
- Maximum Current Draw: 9A (12V)
- Dimensions:
- Height: 293 mm
- Width: 293 mm
- Depth: 58 mm
- Weight: 1.45 kg
- Operating Voltage: 12V DC
Kit Contents:
- 12-inch Thermatic® Cooling Fan (12V)
- Motor, fan blade, shroud, and mounting feet
- Installation guide
Optional Accessories:
- Universal Fan Fitting Kit (#0579 or #0578)
- Thermatic® Fan Switches (available in mechanical and digital versions)
Applications:
- Radiator cooling fan
- Air conditioner condenser fan
- Oil cooler fan
