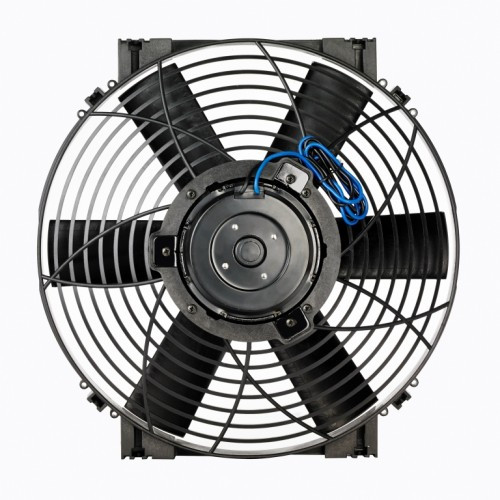

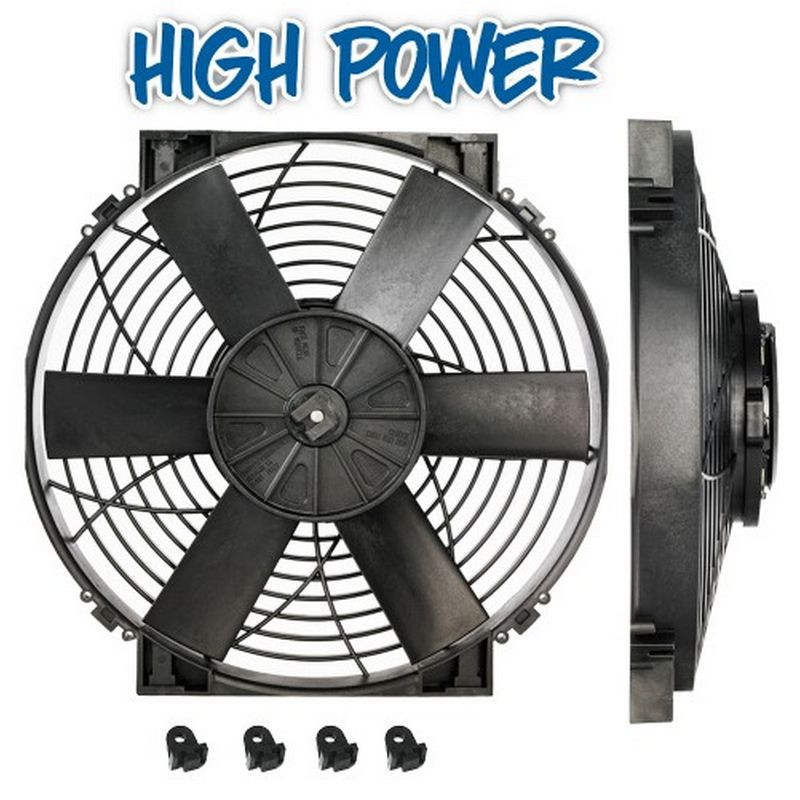

The Davies Craig 14-inch (35 cm) High Power Thermatic® Cooling Fan (12V) is a reliable, high-performance cooling solution designed for radiators, air conditioner condensers, and oil coolers.
With its reversible blade and polarity design, the fan can operate in both pusher and puller configurations, making it versatile for various cooling applications. Its compact depth and high airflow capacity make it perfect for demanding cooling needs.
Key Features:
- Airflow: Up to 1500 CFM (2549 m³/hr) for powerful cooling.
- Energy Efficiency: Enhances fuel economy and engine performance.
- Bi-Directional Airflow: Suitable for both pusher and puller configurations.
- Compact Design: 94 mm deep, perfect for tight spaces.
- Motor Options: Available with brushed or long-life brushless motor.
Specifications:
- Airflow: 1500 CFM (2549 m³/hr)
- Maximum Current Draw: 18A (12V)
- Dimensions:
- Height: 348 mm
- Width: 348 mm
- Depth: 94 mm
- Weight: 2.5 kg
- Operating Voltage: 12V DC
Kit Contents:
- 14-inch High Power Thermatic® Fan (12V)
- Motor, fan blade, shroud, and mounting feet
- Installation guide
Optional Accessories:
- Universal Fan Fitting Kit (#0579 or #0578)
- Thermatic® Fan Switches (available in mechanical and digital versions)
Applications:
- Radiator cooling fan
- Air conditioner condenser fan
- Oil cooler fan
