The Davies Craig 14-inch (35 cm) Thermatic Slimline Cooling Fan (12V) is a top-quality, space-saving cooling fan suitable for radiators, air conditioner condensers, and oil coolers.
With its reversible blade and polarity, the fan can operate as either a pusher or puller, making it a versatile choice for various cooling needs. Its slimline design is perfect for tight spaces, delivering excellent airflow while maintaining energy efficiency.
Key Features:
- Airflow: Up to 1021 CFM (28.9 m³/min, 1735 m³/hr).
- Energy Efficiency: Reduces fuel consumption and enhances engine performance.
- Bi-Directional Airflow: Usable in both pusher and puller configurations.
- Compact Design: Slimline with a depth of only 76 mm.
- Motor Options: Available with brushed or long-life brushless motor.
Specifications:
- Airflow: 1021 CFM (1735 m³/hr)
- Maximum Current Draw: 11A (12V)

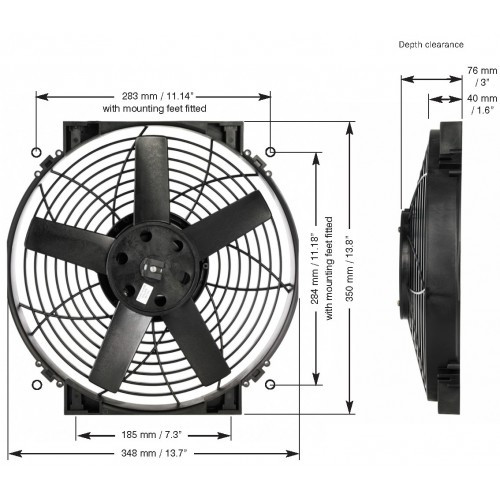

- Dimensions:
- Height: 350 mm
- Width: 348 mm
- Depth: 76 mm
- Weight: 1.5 kg
- Operating Voltage: 12V DC

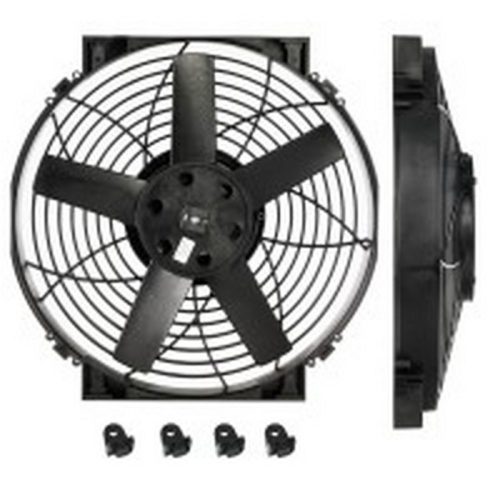

Kit Contents:
- 14-inch Slimline Thermatic® Fan (12V)
- Motor, fan blade, shroud, and mounting feet
- Installation guide
Optional Accessories:
- Universal Fan Fitting Kit (#0579 or #0578)
- Thermatic® Fan Switches (available in mechanical and digital versions)
Applications:
- Radiator cooling fan
- Air conditioner condenser fan
- Oil cooler fan
