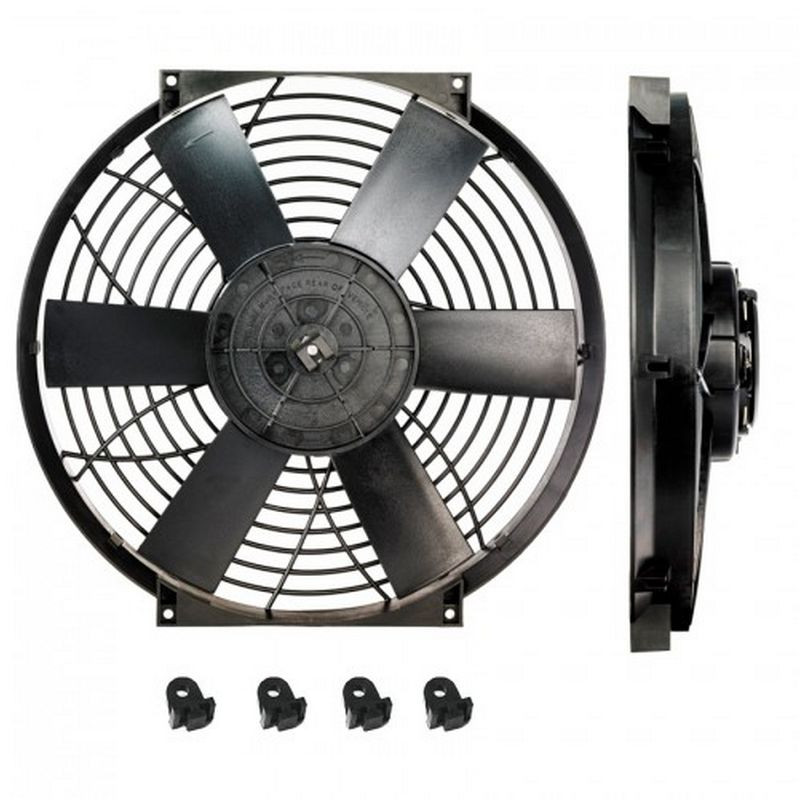

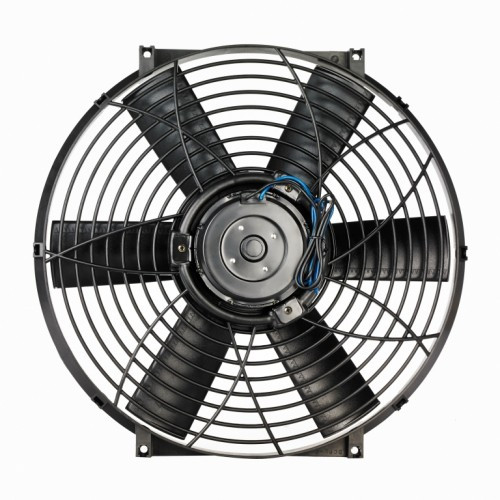

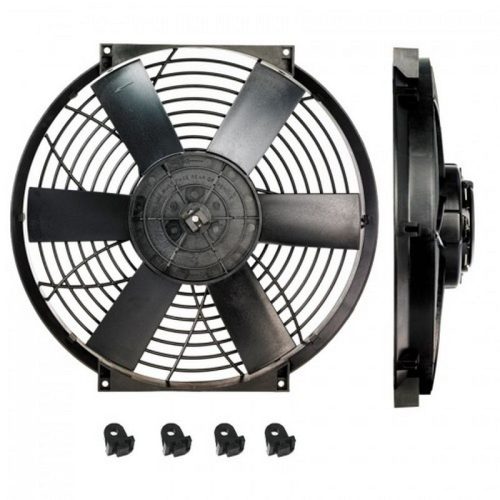

The Davies Craig 16-inch (40 cm) Thermatic® Cooling Fan (12V) is a powerful and reliable fan designed to meet the needs of heavy-duty cooling applications for radiators, air conditioner condensers, and oil coolers.
This versatile fan can operate in both pusher and puller modes, simply by reversing the blade and adjusting the polarity. Its compact yet robust design ensures it delivers exceptional cooling performance in a variety of setups.
Key Features:
- Airflow: Up to 2120 CFM (3602 m³/hr) for outstanding cooling performance.
- Bi-Directional Airflow: Suitable for both pusher and puller configurations.
- Energy Efficiency: Reduces fuel consumption while enhancing engine performance.
- Compact Design: Depth of 97 mm for easy installation in tight spaces.
- Motor Options: Available with brushed or long-life brushless motor.
Specifications:
- Airflow: 2120 CFM (3602 m³/hr)
- Maximum Current Draw: 19A (12V)

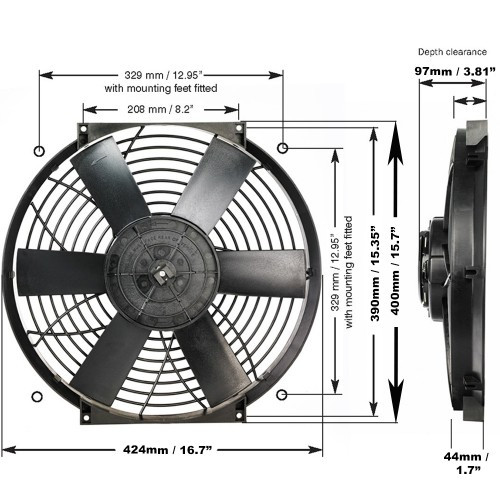

- Dimensions:
- Height: 400 mm
- Width: 424 mm
- Depth: 97 mm
- Weight: 3.0 kg
- Operating Voltage: 12V DC
Kit Contents:
- 16-inch Thermatic® Fan (12V)
- Motor, fan blade, shroud, and mounting feet
- Installation guide
Optional Accessories:
- Universal Fan Fitting Kit (#0579 or #0578)
- Thermatic® Fan Switches (available in mechanical and digital versions)
Applications:
- Radiator cooling fan
- Air conditioner condenser fan
- Oil cooler fan
