The Davies Craig EWP115 is a 12V electric water pump with a maximum flow rate of 115 liters per minute (LPM). Its glass-filled nylon construction ensures durability and lightweight performance, making it a practical solution for long-term use.
Its universal design allows for straightforward installation, making it ideal for small, medium, large, high-performance, and 4WD vehicles. It improves engine cooling efficiency, increases power and torque, and contributes to better fuel economy.

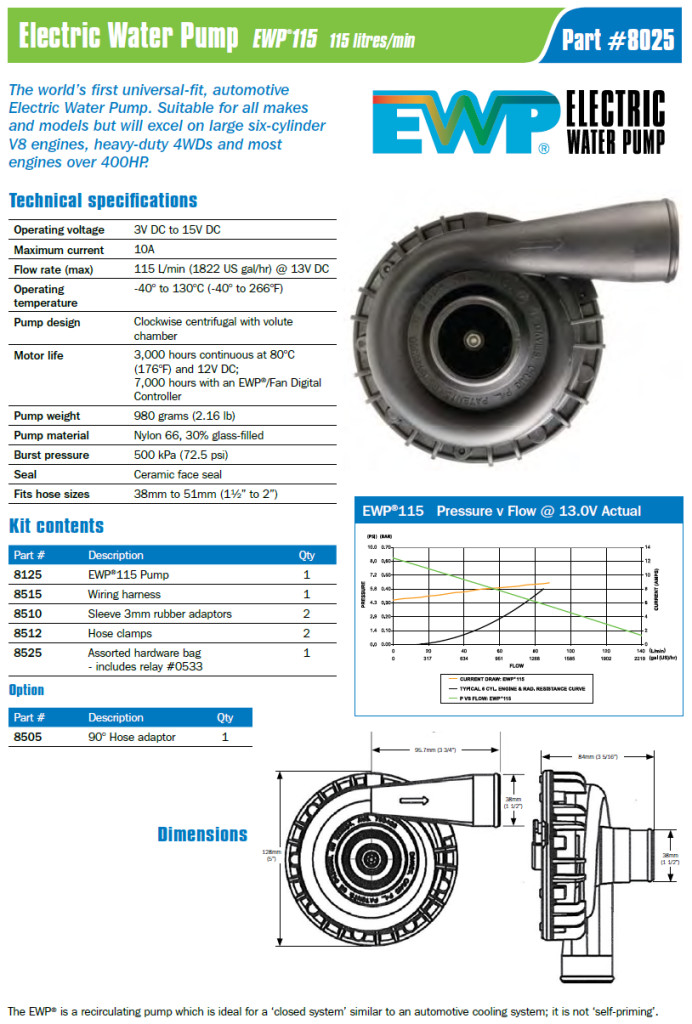

Technical Specifications:
- Voltage: 12V
- Operating Voltage: 3V DC - 15V DC
- Maximum Current Draw: 10A at 13V
- Maximum Flow Rate: 139 L/min at 13V DC
- Operating Temperature Range: -40°C to 120°C
- Pump Design: Clockwise centrifugal with volute chamber
- Pump Weight: 920 g
- Pump Material: Nylon 66, 30% glass-filled
- Burst Pressure: 500 kPa (72.5 psi)
- Seal Type: Ceramic face seal

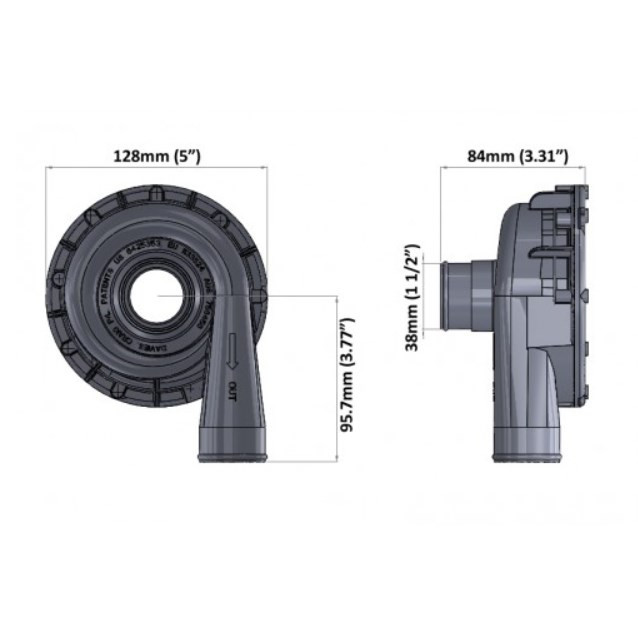

- Compatible Hose Sizes: 35 mm - 51 mm (1⅜” - 2”)

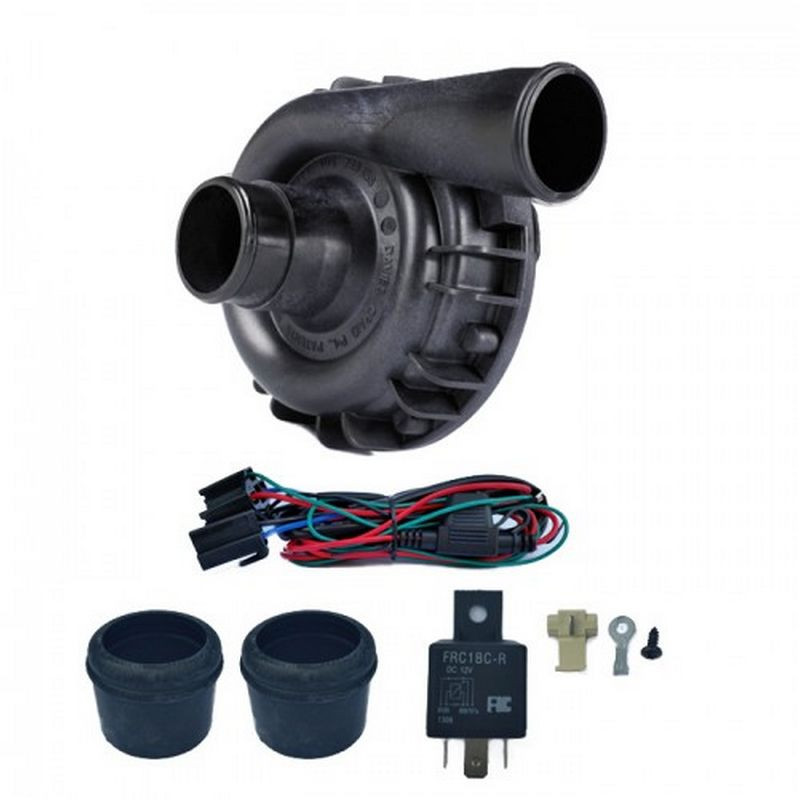

The kit includes the EWP115 nylon pump, a basic wiring harness, hose clamps, and a 12V 40-amp relay.
The EWP115 is compatible with the LCD EWP®/Fan Digital Controller (sold separately), which manages both pump and fan operations based on engine coolant temperature, enhancing overall system efficiency.
