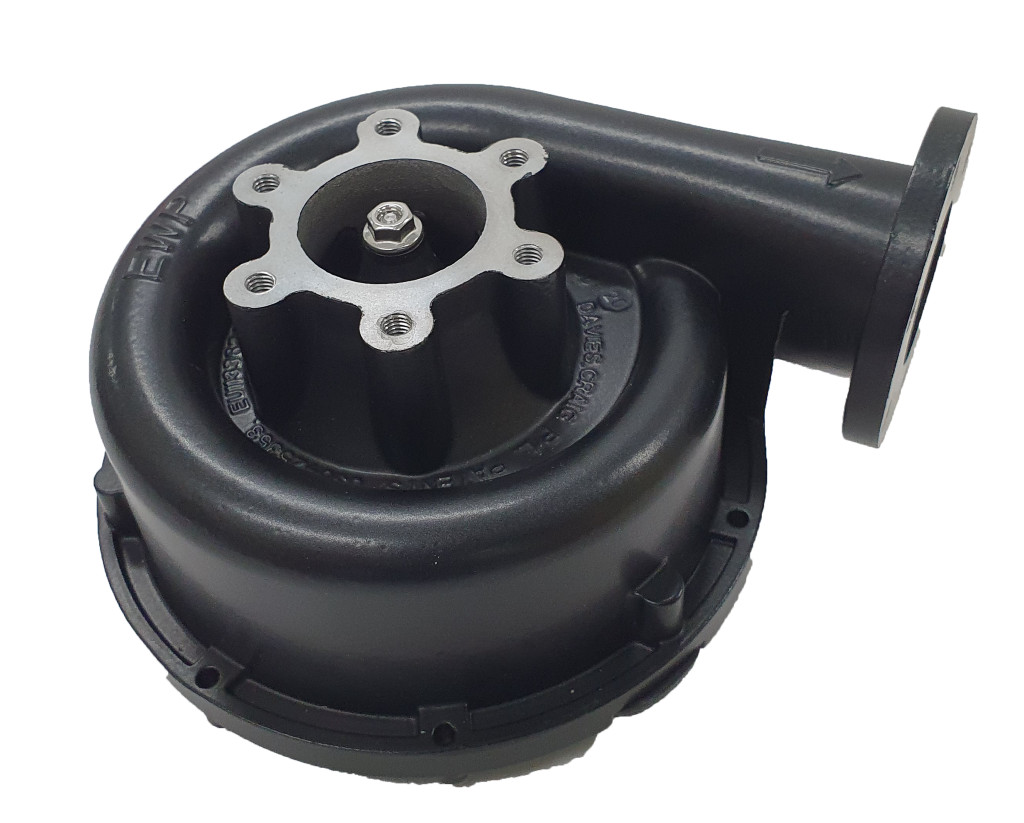

The Davies Craig EWP140 is a 12V electric water pump with a maximum flow rate of 147 liters per minute (LPM). This sleek black, aluminum pump is not only durable but also adds a modern touch to your engine cooling setup.
Its universal design makes it an excellent choice for high-performance, turbocharged, supercharged, and "heat-challenged" engines. It enhances cooling, increases power and torque, and improves fuel economy. By replacing or supplementing the belt-driven mechanical water pump, the EWP140 can free up to 10 kW (13 hp) of extra power.
Technical Specifications:
- Voltage: 12V
- Operating Voltage: 3V DC - 15V DC
- Maximum Current Draw: 10A at 13V
- Maximum Flow Rate: 147 L/min at 13V DC
- Operating Temperature Range: -40°C to 120°C
- Pump Design: Clockwise centrifugal with volute chamber
- Pump Weight: 1,226 g
- Pump Material: Aluminum (powder-coated, black)
- Burst Pressure: 500 kPa (72.5 psi)
- Seal Type: Ceramic face seal
- Compatible Hose Sizes: 35 mm - 51 mm (1⅜” - 2”)

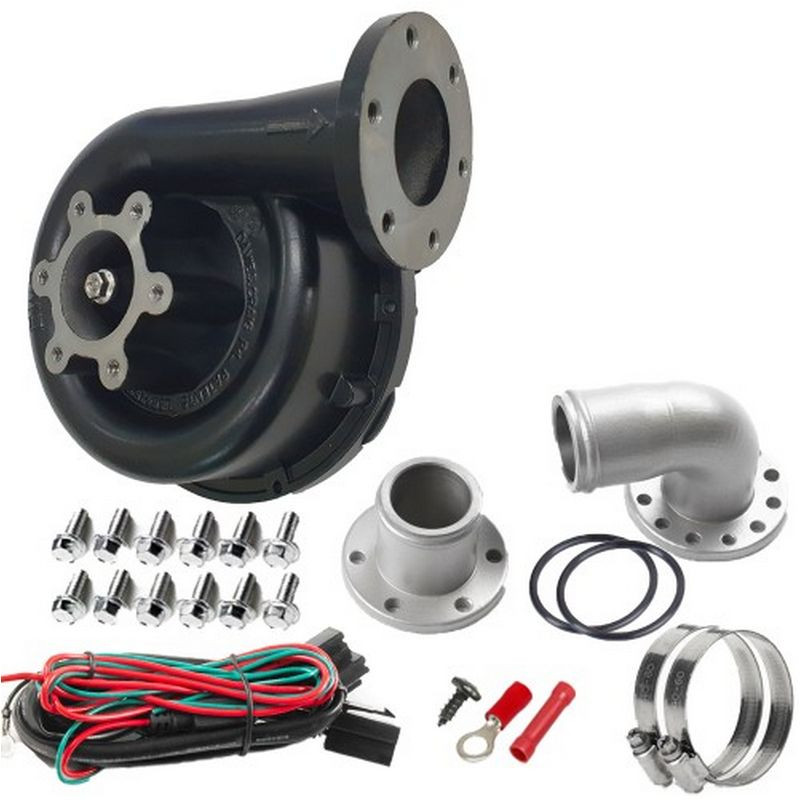

The kit includes the EWP140 pump, straight and 90° aluminum adaptors, O-rings, a basic wiring loom, hose clamps, and a 12V 40-amp relay.
The EWP140 is compatible with the LCD EWP®/Fan Digital Controller (sold separately), which enhances system efficiency by automatically managing pump and fan operations.
