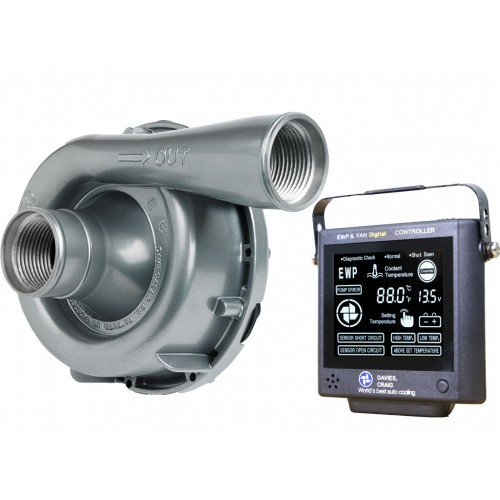

The Davies Craig EWP150 Combo includes the EWP150 electric water pump and the LCD EWP/Fan digital controller, offering a cutting-edge cooling solution for high-performance engines.
The EWP150 aluminum pump delivers up to 162 liters per minute (LPM) flow rate, eliminating the parasitic power losses of belt-driven mechanical water pumps and freeing up to 10 kW (13 hp) of additional power. The LCD digital controller automatically regulates pump and fan operation based on coolant temperature, enhancing efficiency and fuel savings.

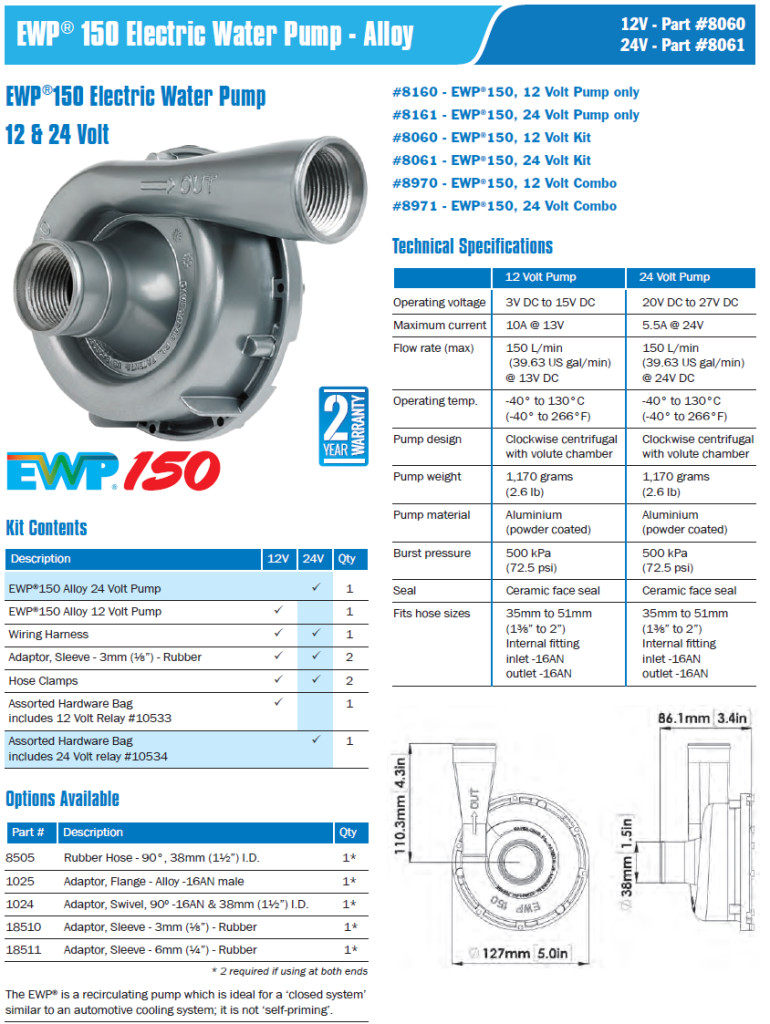

Technical Specifications:
- Pump Material: Aluminum (powder-coated)
- Maximum Flow Rate: 162 L/min at 13V DC
- Operating Voltage: 3V DC - 15V DC
- Maximum Current Draw: 10A at 13V
- Operating Temperature Range: -40°C to 120°C
- Pump Weight: 1,170 g
- Seal Type: Ceramic face seal

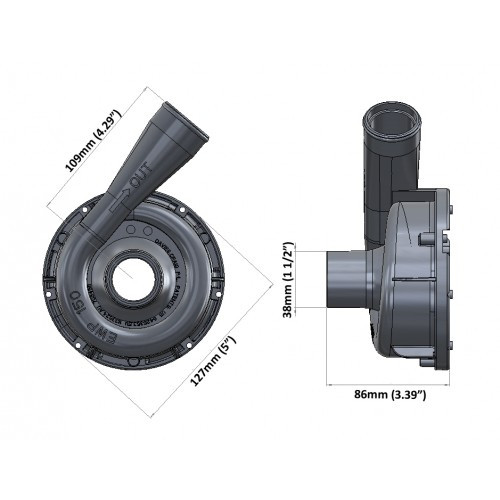

- Compatible Hose Sizes: 35 mm - 51 mm (1⅜” - 2”)
- LCD Controller Features:
- Temperature Control: 40°C to 110°C (in 1°C increments)
- Automatic Fan Control
- Alarms (Overheating, Low Temperature, Sensor Error, etc.)
- Memory for Set Temperature
- Voltage Display

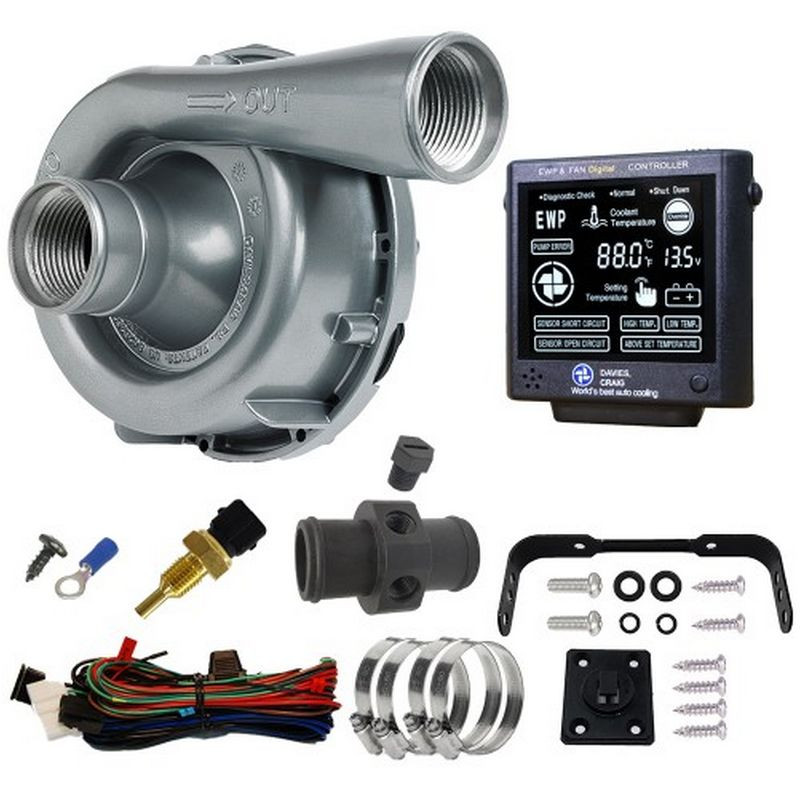

Combo Contents:
- EWP150 aluminum electric water pump
- LCD digital controller with mounting accessories
- Coolant temperature sensor (¼" NPT thread)
- 38 mm nylon adapter (2 x ¼" NPT threads)
- Wiring harness and clamps
