The Davies Craig EWP80 aluminum electric water pump is a universal, easy-to-install solution for optimizing engine cooling. With a maximum flow rate of 90 liters per minute, it is perfect for naturally aspirated engines up to two liters.
The pump is constructed from lightweight, durable aluminum with a matte black powder-coated finish. Its six-bolt flange connections and included straight and 90-degree nylon adapters provide versatile installation options.
The EWP80 helps eliminate the power losses caused by belt-driven mechanical water pumps, freeing up to 10 kW (13 hp) of additional power and improving fuel efficiency. Combined with the LCD EWP/Fan Digital Controller (sold separately), the pump speed automatically adjusts based on engine coolant temperature, maximizing performance and efficiency.
Technical Specifications:
- Voltage: 12V DC
- Maximum Current Draw: 7.5A at 13V
- Maximum Flow Rate: 90 L/min
- Maximum Head Height: 5.2 m
- Operating Temperature Range: -40°C to 120°C
- Pump Material: Aluminum (powder-coated, black)
- Pump Weight: 1.1 kg

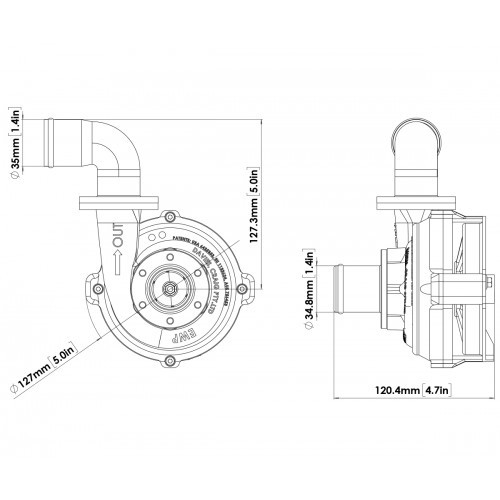

- Connections: 35 mm (1⅜”) flange fittings

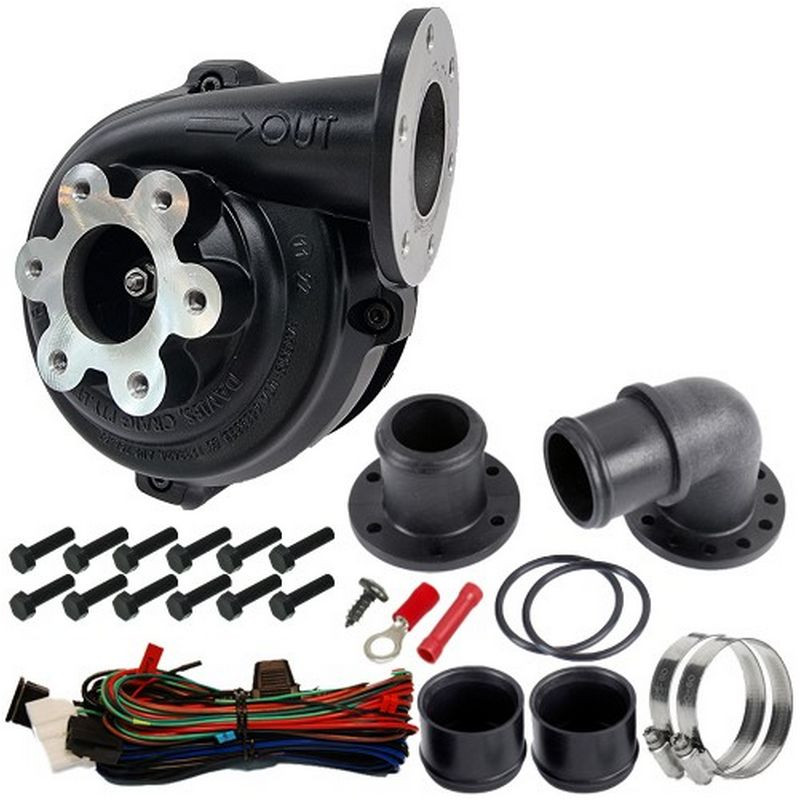

Kit Contents:
- EWP80 aluminum pump
- Straight and 90-degree nylon adapters
- O-rings (2 pcs)
- Rubber sleeves (3 mm)
- Hose clamps (2 pcs)
- Basic wiring loom
- 12V 40A relay
- Mounting accessories and installation manual
