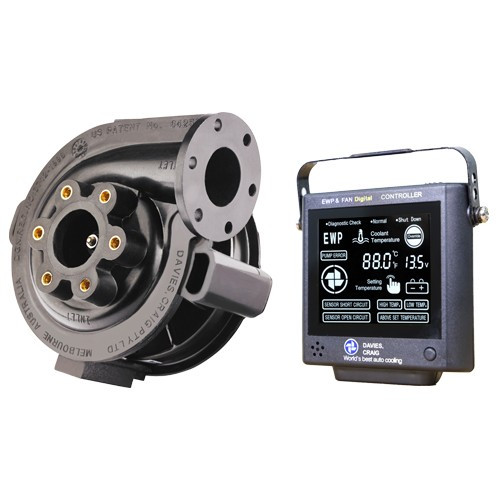

The Davies Craig EWP80 Electric Water Pump + LCD Controller Kit is a comprehensive engine cooling solution that significantly enhances temperature regulation while boosting power and fuel efficiency.
The EWP80 electric water pump is made from lightweight, glass-filled nylon, ensuring durability and resistance to corrosion. Delivering up to 90 liters per minute, it is ideal for naturally aspirated or turbocharged engines up to two liters. The LCD EWP/Fan Digital Controller automatically adjusts the pump and fan operation based on coolant temperature, maximizing efficiency and preventing engine overheating.
Key Benefits:
- Reduces power losses from belt-driven mechanical pumps, freeing up to 10 kW (13 hp) of additional power.
- Universal design compatible with most vehicles.
- Simple, do-it-yourself installation.
Technical Specifications:
- Voltage: 12V DC
- Maximum Current Draw: 7.5A at 13V
- Maximum Flow Rate: 90 L/min
- Operating Temperature Range: -40°C to 120°C
- Pump Material: Nylon 66 (30% glass-filled)
- Pump Weight: 900 g
- Seal Type: Ceramic face seal
- Connections: 35 mm (1⅜”)

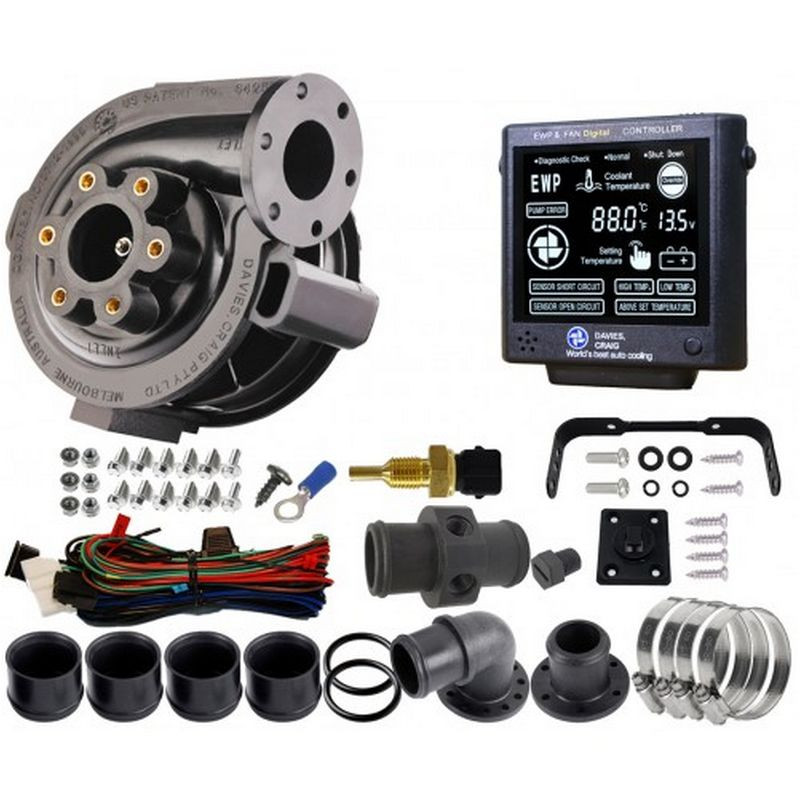

Kit Contents:
- EWP80 electric water pump
- LCD EWP/Fan digital controller
- Straight and 90° nylon adapters
- O-rings (2 pcs)
- Rubber sleeves (4 pcs)
- Hose clamps (4 pcs)
- Coolant temperature sensor (¼" NPT thread)
- Mounting brackets and accessories
- Basic wiring loom
