The Davies Craig EWP80 (Nylon) Electric Water Pump Kit is an innovative engine cooling solution that optimizes temperature regulation. Made from glass-filled nylon, the pump is lightweight, heat-resistant, and corrosion-resistant, ensuring long-lasting performance.
Delivering up to 90 liters per minute, the EWP80 is perfect for naturally aspirated or turbocharged engines up to two liters. By eliminating the power losses associated with belt-driven mechanical pumps, it frees up to 10 kW (13 hp) of additional power, improving fuel efficiency and preventing overheating.
Technical Specifications:
- Voltage: 12V DC
- Maximum Current Draw: 7.5A at 13V
- Maximum Flow Rate: 90 L/min
- Operating Temperature Range: -40°C to 120°C
- Pump Material: Nylon 66 (30% glass-filled)
- Pump Weight: 900 g
- Seal Type: Ceramic face seal

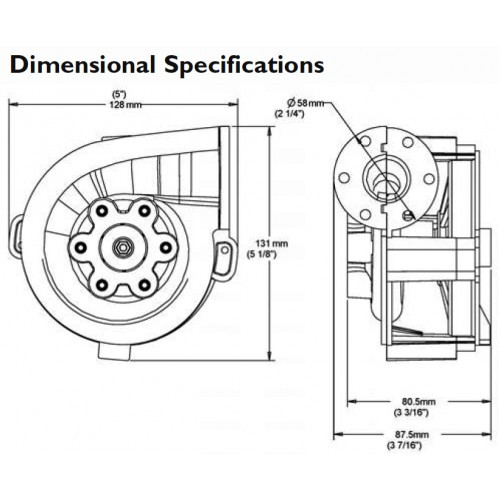

- Connections: 35 mm (1⅜”)

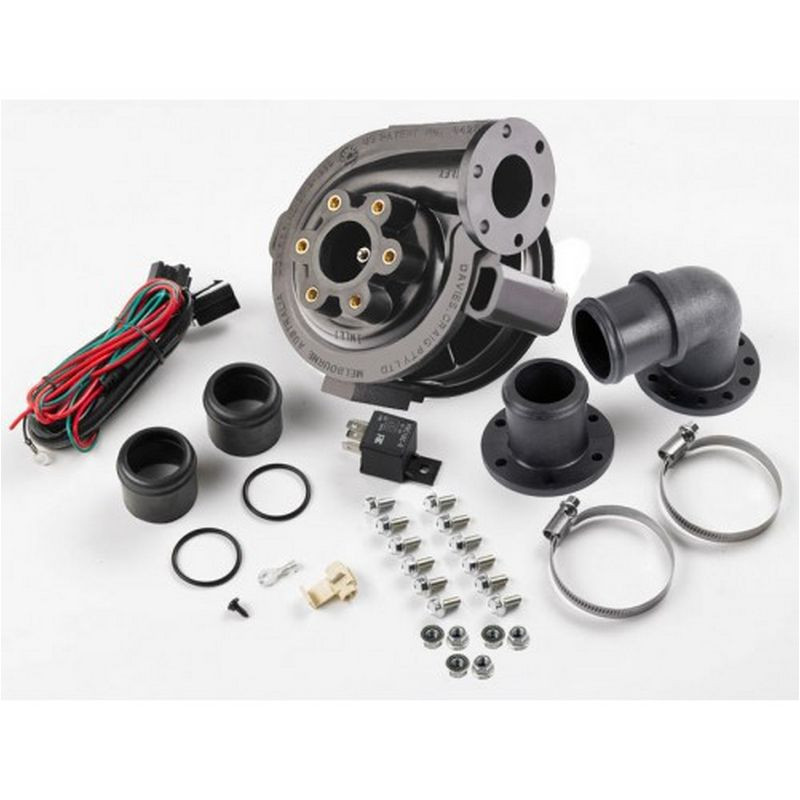

Kit Contents:
- EWP80 nylon electric water pump
- Straight and 90-degree nylon adapters
- O-rings (2 pcs)
- Rubber sleeves (3 mm, 2 pcs)
- Hose clamps (2 pcs)
- Basic wiring loom
- 12V 40-amp relay
- Mounting accessories
