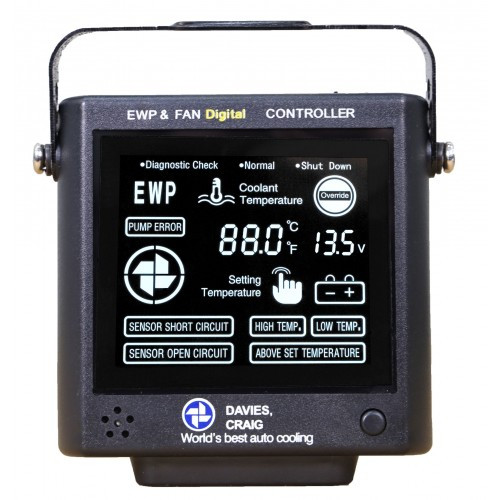

The Davies Craig LCD Electric Water Pump (EWP) & Fan Controller is an advanced cooling management system designed to automatically control the operation of EWP pumps and Thermatic® fans. The controller monitors coolant temperature and adjusts the pump speed accordingly, while also managing fan operation for optimal cooling.
With customizable temperature settings ranging from 40°C to 110°C, the system ensures precise temperature control. Additionally, the controller continues to run the pump and fan after engine shutdown to prevent heat soak and rapidly reduce engine temperature.
Features:
- Voltage Range: 12V - 29V DC
- Temperature Settings: 40°C - 110°C (adjustable in 1°C increments)
- Fan Activation: Automatically activates at +3°C above set temperature
- Overheat Protection: Audible and visual alerts for high and low temperatures
- Post-Shutdown Cooling: Operates pump and fan for up to 3 minutes or -10°C below set temperature

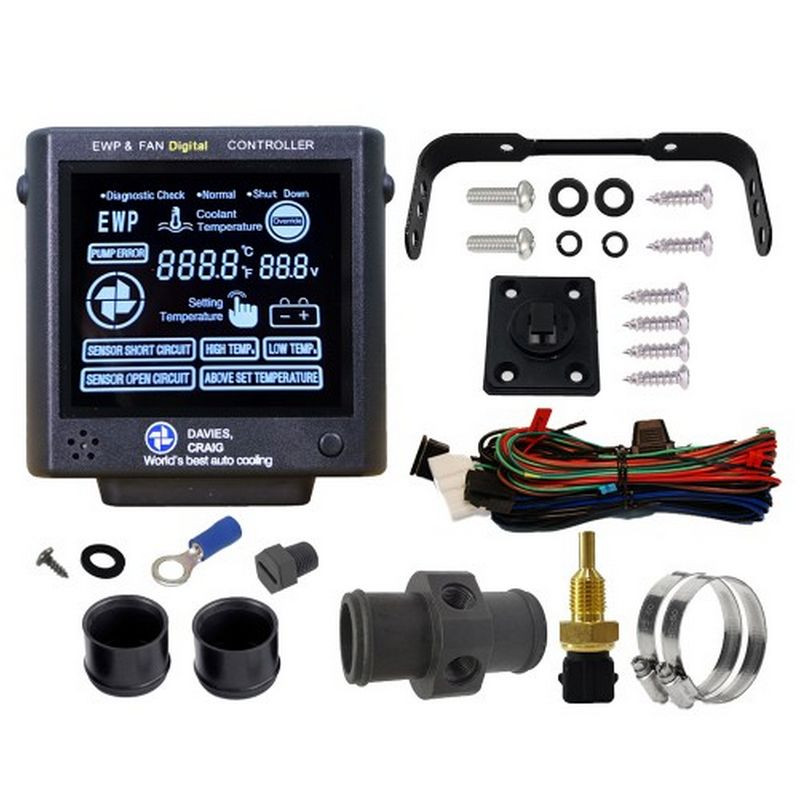

Kit Contents:
- LCD EWP®/Fan Digital Controller
- Wiring harness (with 10A fuse)
- Temperature sensor (¼" NPT thread)
- 35 mm in-line adapter
- Rubber sleeves (to fit 38 mm hoses)
- Hose clamps (2 pcs)
- Nylon mounting plate and bracket
- Installation and user guide
