The Davies Craig Universal Fan Mounting Kit (Single, 12V) is a comprehensive solution for mounting and wiring electric fans. This kit includes all the essential hardware, wiring components, fuses, and connectors to make the installation process straightforward and efficient.

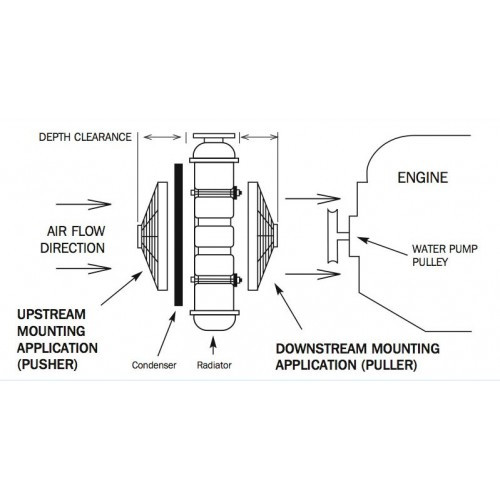

This mounting kit is ideal for installing radiator cooling fans, air conditioner condenser fans, or oil cooler fans. The included universal fan hardware ensures compatibility with most electric fan types, making it a versatile choice for various applications.

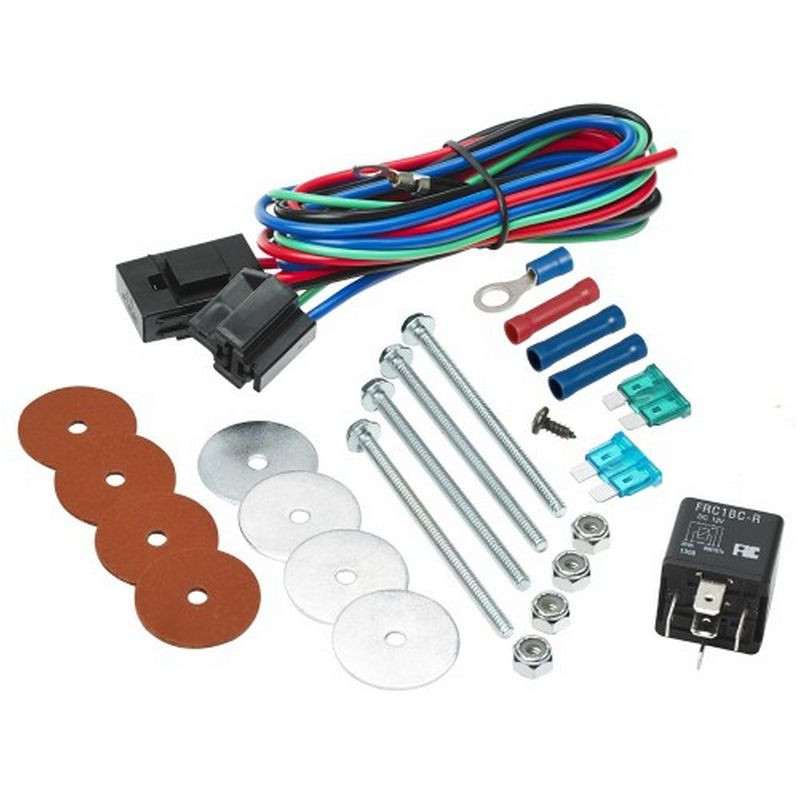

Kit Contents:
- 15A Fuse (1 unit)
- 30A Fuse (1 unit)
- Red Wire Joiner (1 unit)
- Plastic washers and screws (4 units)
- 12V 40A Relay, 5-pin with resistor protection (1 unit)
- Blue Wire Joiners (2 units)
- 6mm Ring Terminal (Blue) (1 unit)
- Fan wiring harness (12V & 24V compatible) (1 unit)
- Self-tapping screw (1 unit)
- Installation instructions (1 unit)
Recommended Applications:
- Radiator cooling fans
- Air conditioner condenser fans
- Oil cooler fans
Additional Accessories:
For thermostatic fan control, it is recommended to purchase a Davies Craig Thermatic® Switch Kit (e.g., #0401 or #0400) or a Twin Fan Controller Kit (#0444, #0445, #0500).
Technical Specifications:
- Compatibility: 12V fans
- Recommended Fuse:
- 8"-12" fans: 15A
- 14"-16" high-power fans: 30A
- Compatible Fans: Davies Craig Thermatic® and other electric fan models
