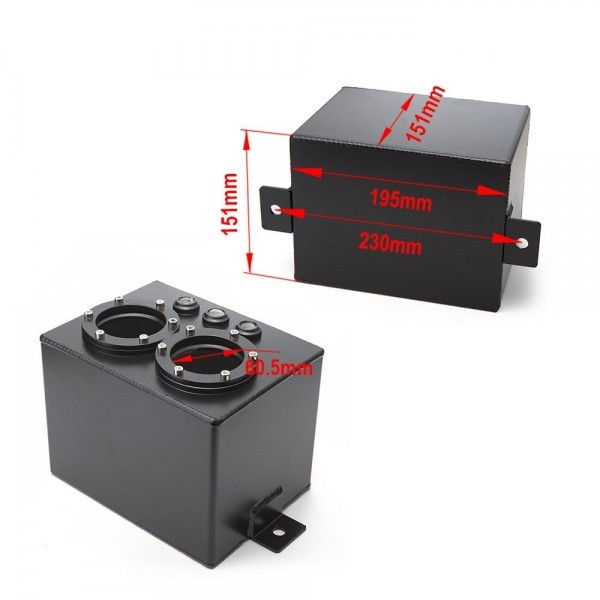

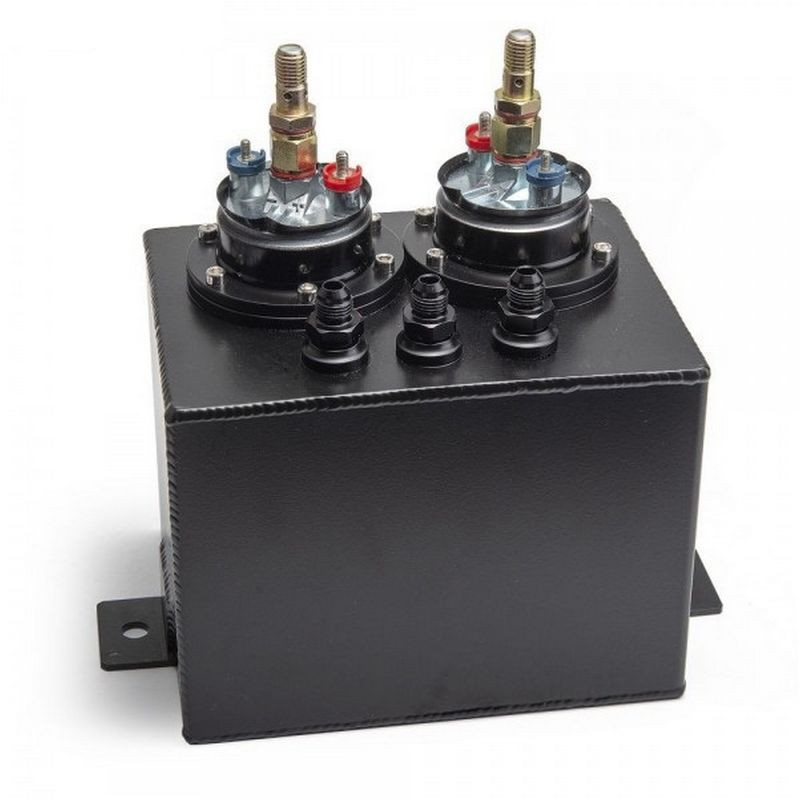

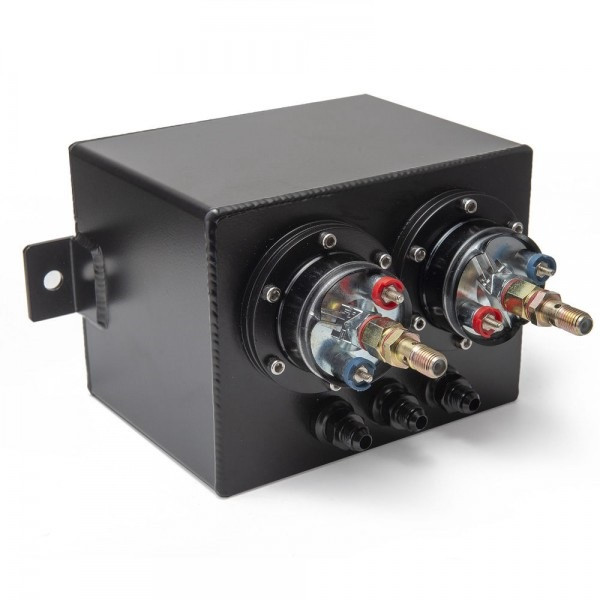

EPMAN Aluminium Surge Swirl Pot Tank with Dual Fuel Pump - 3 Liters

EPMAN Aluminium Surge Swirl Pot Tank with Dual Fuel Pump - 3 Liters

It is recommended for use in drift, drag and track racing cars. The tank must be used in such a way that the car has another, conventional, large gasoline tank, from which the fuel is transferred with low pressure into this tank, which prevents the gasoline from floating, from where the fuel goes to the engine with high pressure.

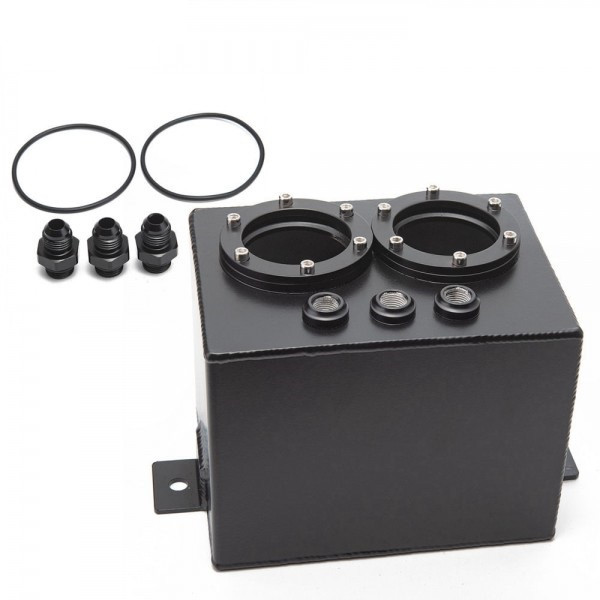

The following must be connected to the 3x AN6 connections on it:

- petrol is fed from the big tank

- petrol returning to the large tank

- gasoline return from the engine side from the high-pressure gasoline circuit (return branch after 044 large pump and gasoline pressure regulator)

Can be used with Bosch 044 and 044 alternative pumps. The 044 pump is basically an external fuel pump, but with this buffer tank, it must be installed inside the buffer tank, namely with one end of the pump sticking out of the tank.

There is no sponge in the tank!

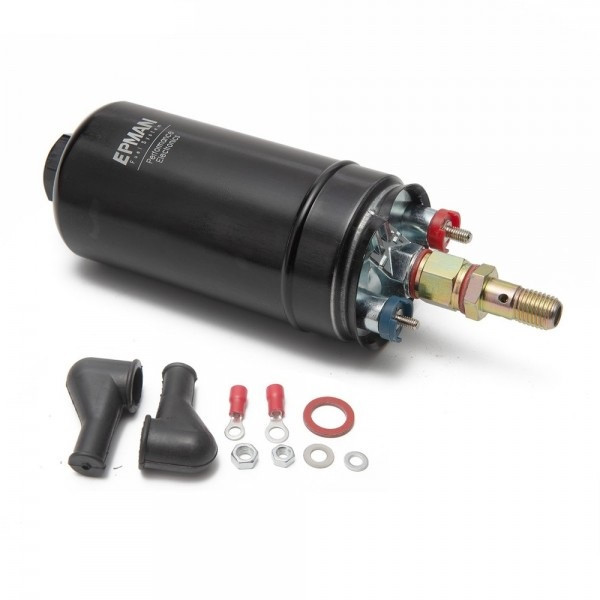

2 Fuel pump included in the kit!
