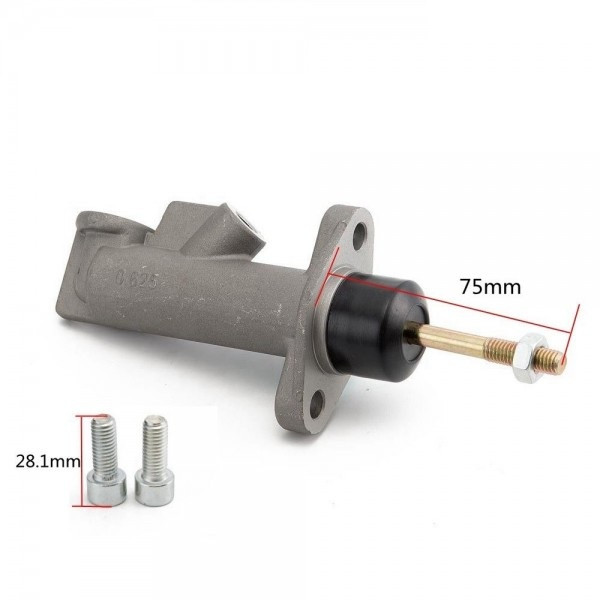

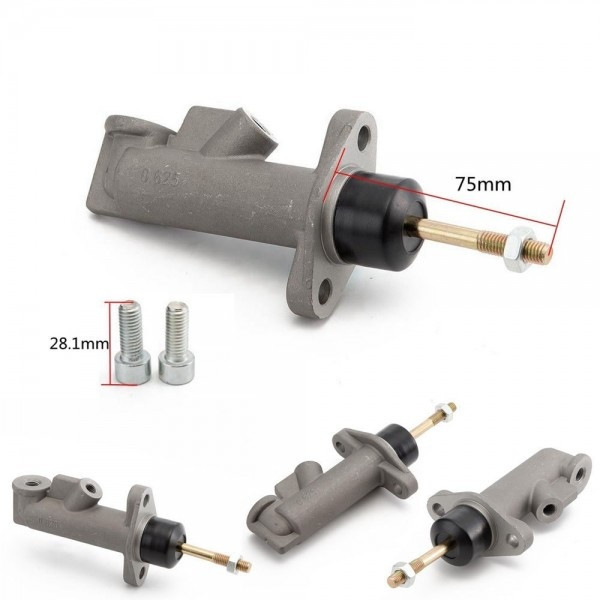

This EPMAN master cylinder is specifically designed for hydraulic handbrakes and custom brake systems. The 0.625" (15.875 mm) bore ensures accurate and effective braking. The total length of the master cylinder is 185 mm, with a push rod length of 75 mm.
The inlet port features a 7/16-20 (AN4) convex fitting, while the outlet port has a 3/8-24 (AN3) concave fitting. The push rod thread is 5/16" UNF.
This master cylinder is an excellent choice for those seeking a durable and high-performance solution for their hydraulic brake system, whether for street or motorsport use.
Key Features:
- Bore Size: 0.625" (15.875 mm)
- Total Length: 185 mm
- Push Rod Length: 75 mm
- Inlet Port: 7/16-20 (AN4) convex
- Outlet Port: 3/8-24 (AN3) concave
- Push Rod Thread: 5/16" UNF
This master cylinder guarantees stable and precise braking, making it an essential component for motorsports and custom brake system setups.
