This EPMAN master cylinder is designed for hydraulic handbrakes and custom brake systems where reliable and efficient braking performance is required. The 0.750" (19.05 mm) bore ensures accurate braking, making it essential for both racing and street applications.

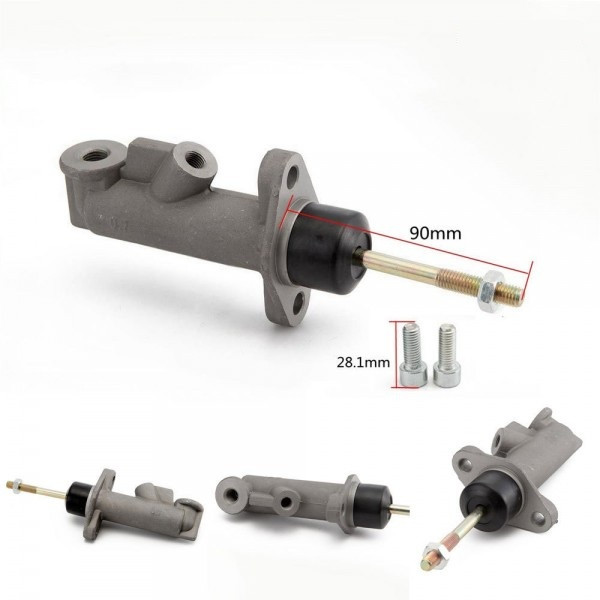

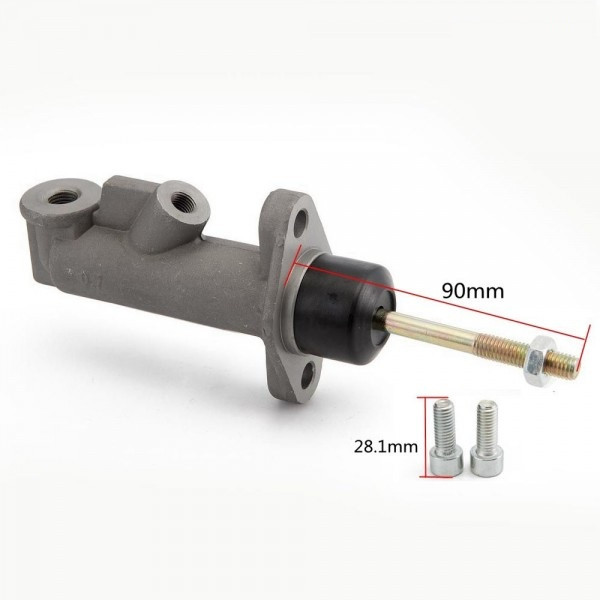

The total length of the master cylinder is 200 mm, with a push rod length of 90 mm. The inlet port features a 7/16-20 (AN4) convex fitting, while the outlet port has a 3/8-24 (AN3) concave fitting. The push rod thread is 5/16" UNF.
Key Features:
- Bore Size: 0.750" (19.05 mm)
- Total Length: 200 mm
- Push Rod Length: 90 mm
- Inlet Port: 7/16-20 (AN4) convex
- Outlet Port: 3/8-24 (AN3) concave
- Push Rod Thread: 5/16" UNF
The EPMAN master cylinder provides long-lasting reliability and excellent braking performance, making it an ideal choice for custom brake systems and hydraulic handbrakes.
