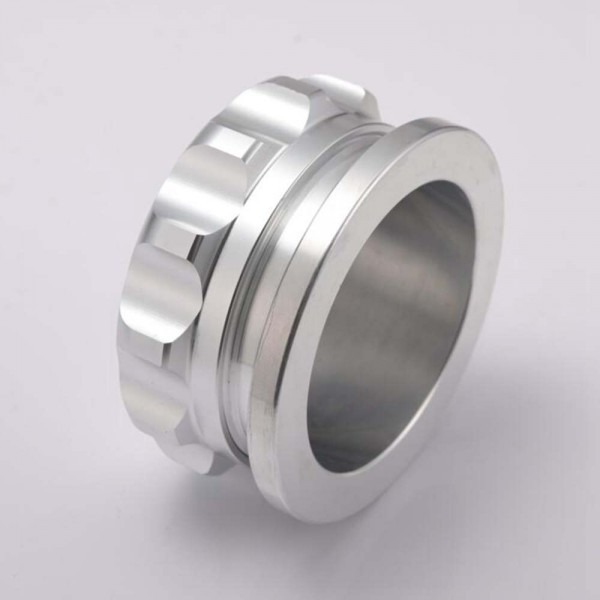

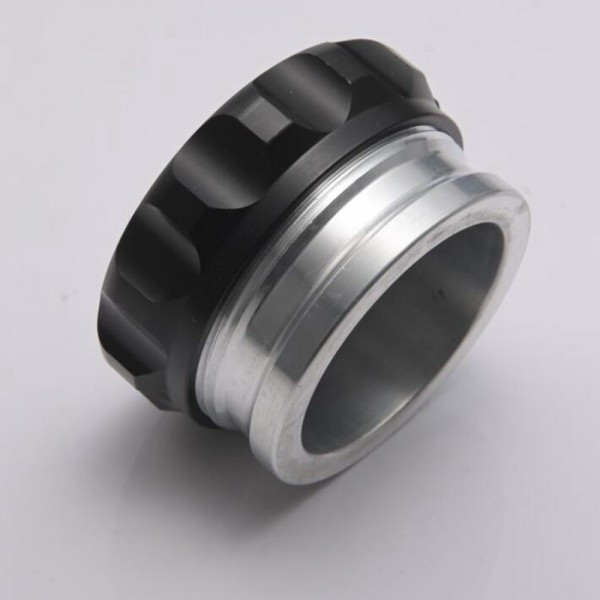

The EPMAN weld-on aluminum fuel tank filler neck is an excellent choice for fuel tanks, water tanks, cooling systems, and other custom applications. Made from 6061-T6 aluminum alloy, it offers durability and corrosion resistance.

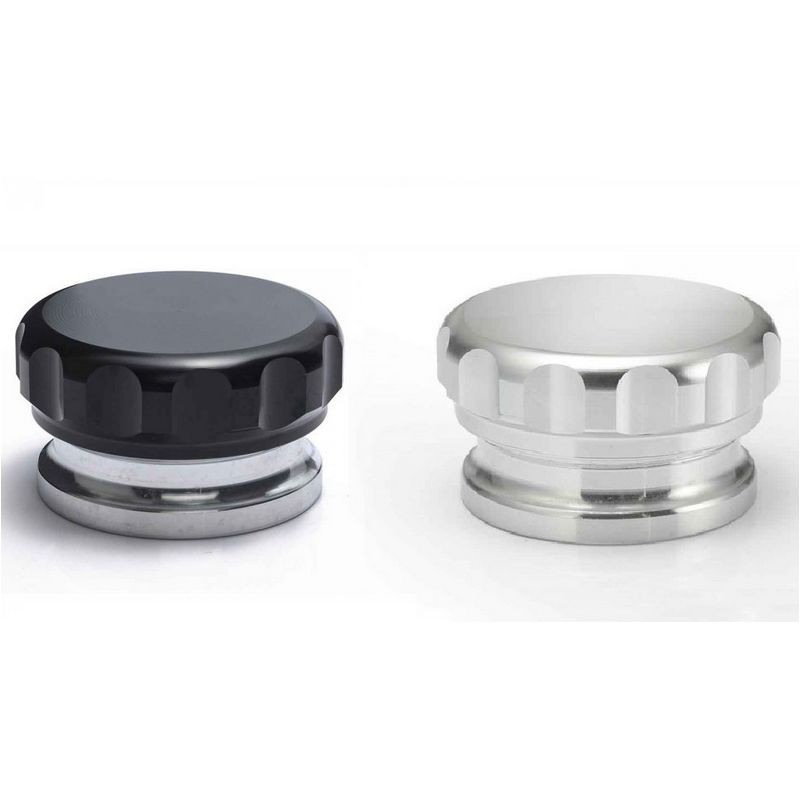

The screw cap features a knurled outer edge for easy grip and secure closure. A rubber sealing ring ensures a leak-proof seal.

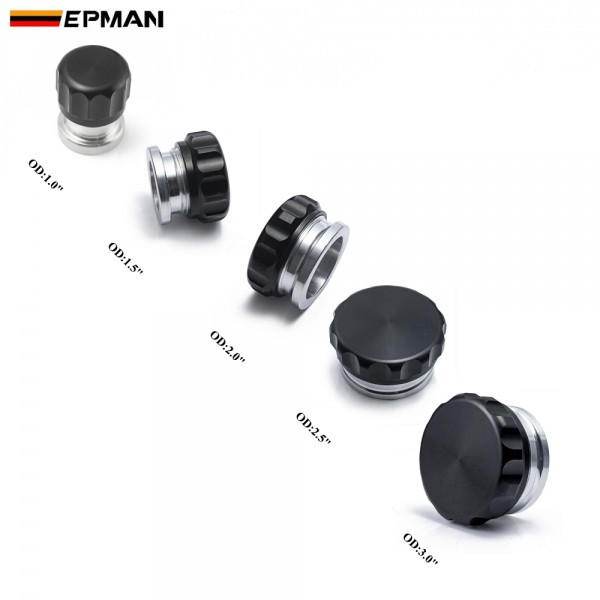

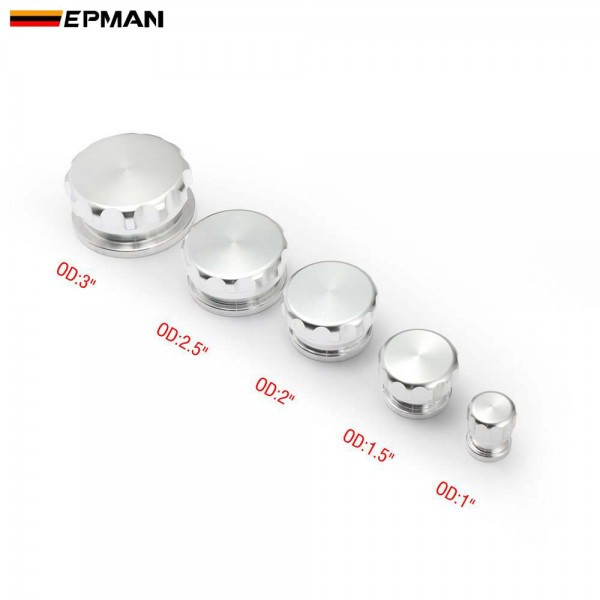

Available Sizes & Specifications:

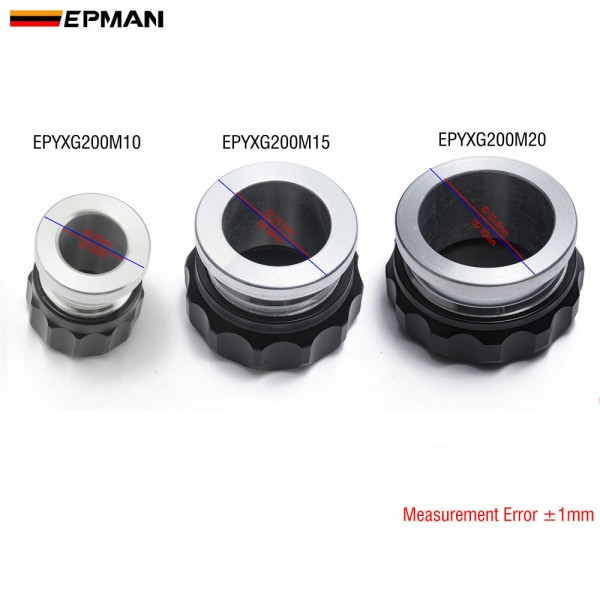

- EPYXG200M10 – Neck OD: 25 mm (1.0”), Neck ID: 14.0 mm, Length (incl. cap): 32 mm
- EPYXG200M15 – Neck OD: 38 mm (1.5”), Neck ID: 24.5 mm, Length (incl. cap): 32 mm
- EPYXG200M20 – Neck OD: 50.8 mm (2.0”), Neck ID: 35.8 mm, Length (incl. cap): 32 mm

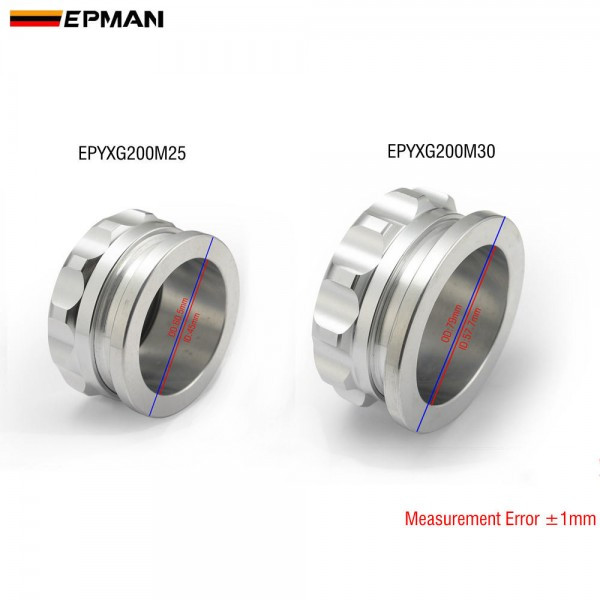

- EPYXG200M25 – Neck OD: 63.5 mm (2.5”), Neck ID: 45.0 mm, Length (incl. cap): 35 mm
- EPYXG200M30 – Neck OD: 76 mm (3.0”), Neck ID: 57.7 mm, Length (incl. cap): 38 mm
Key Features:
6061-T6 aluminum alloy – strong and corrosion-resistant
Weld-on design – ideal for custom tank applications
Screw cap with sealing ring – secure and leak-proof
Multiple sizes available – compatible with various fuel and water tanks
Applications:
️ Fuel tanks, fuel surge tanks
️ Coolant overflow tanks, expansion tanks
️ Custom metal tanks, oil reservoirs
