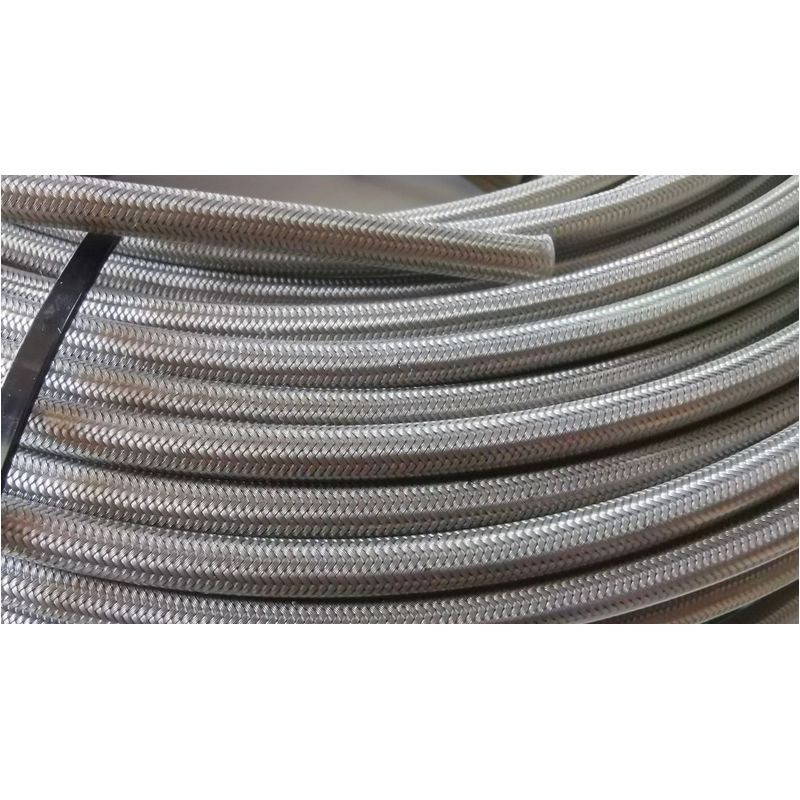

The Goodridge AN3 PTFE (Teflon) High-Pressure Stainless Steel Braided Hose with Clear Protective Coating from the 600 series is specifically engineered for brake, clutch, and hydraulic applications. The clear coat adds an extra layer of protection to the stainless steel braid, enhancing resistance to external elements and making cleaning easier. With a working pressure of 290 bar (4205 psi) and a burst pressure of 870 bar (12618 psi), this hose offers exceptional reliability in high-demand environments. The PTFE liner ensures excellent heat resistance, while the hose’s 38 mm minimum bend radius makes it adaptable for tight spaces. Compatible with AN3 crimp or reusable fittings.
Specifications:
- Maximum Inner Diameter: 3.5 mm
- Outer Diameter: 6.45 mm
- Working Pressure: 290 bar (4205 psi)
- Burst Pressure: 870 bar (12618 psi)
- Weight: 0.088 kg/meter
- Minimum Bend Radius: 38 mm
- Temperature Range: -70°C to +260°C
- Applications: Brake, clutch, hydraulic systems
Advantages:
- Enhanced Durability with Extra Protection: Clear coat over stainless steel braid adds resilience and ease of maintenance.
- High-Pressure Capability: Engineered for demanding applications with high working and burst pressures.
- Versatile Applications: Ideal for brake, clutch, and hydraulic systems.
