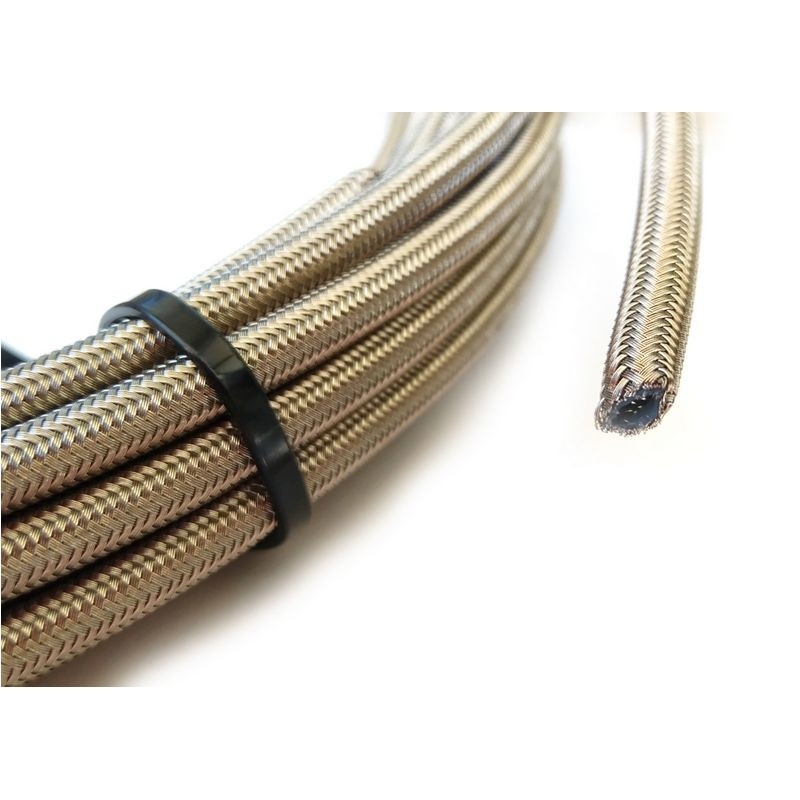

The Goodridge AN3 PTFE (Teflon) High-Pressure Stainless Steel Braided Hose is part of the 600 series, specifically engineered for high-demand applications in brake, clutch, and hydraulic systems. Its stainless steel braid and smooth PTFE liner provide outstanding abrasion resistance, corrosion protection, and heat resistance, tolerating temperatures up to 260°C. With a working pressure of 290 bar (4205 psi) and burst pressure of 870 bar (12618 psi), this hose delivers robust performance for critical applications. Compatible with AN3 crimp or reusable fittings, it offers flexible installation options. The hose has a minimum bend radius of 38 mm, ensuring adaptability in tight spaces.
Specifications:
- Maximum Inner Diameter: 3.5 mm
- Outer Diameter: 7.3 mm
- Working Pressure: 290 bar (4205 psi)
- Burst Pressure: 870 bar (12618 psi)
- Weight: 0.06 kg/meter
- Minimum Bend Radius: 38 mm
- Temperature Range: -70°C to +260°C
- Applications: Brake, clutch, hydraulic systems
Advantages:
- Exceptional Durability and Heat Protection: Stainless steel braid and PTFE liner ensure long life and high heat tolerance.
- High-Pressure Design: Engineered for demanding applications with high working and burst pressures.
- Versatile Applications: Ideal for use in brake, clutch, and hydraulic systems.
