How to Choose the Right Silicone Hose and Clamp?

How to Choose the Right Silicone Hose and Clamp?

Choosing the right silicone hose and clamp is crucial for the efficient operation of cooling systems and intercoolers. Learn what factors to consider for the perfect fit, durability, and performance! Select the correct diameter, material, and thickness to ensure your system always performs at its best.

LLRacing

How to choose the right silicone hose and clamp for cooling systems and intercoolers?

Silicone hoses are essential for modern vehicles' coolant and intercooler systems. Selecting the correct hose optimizes performance, ensures reliability, and guarantees a long service life.

Choosing a Silicone Hose
The outer diameter of the pipe must match the inner diameter of the silicone hose, though a 1 mm deviation is acceptable due to flexibility. For example, for a 51 mm pipe, the inner diameter of the silicone hose can be either 50 or 52 mm, but larger deviations are not recommended. For optimal airflow, it's advised that the hose’s inner diameter is 1 mm larger.

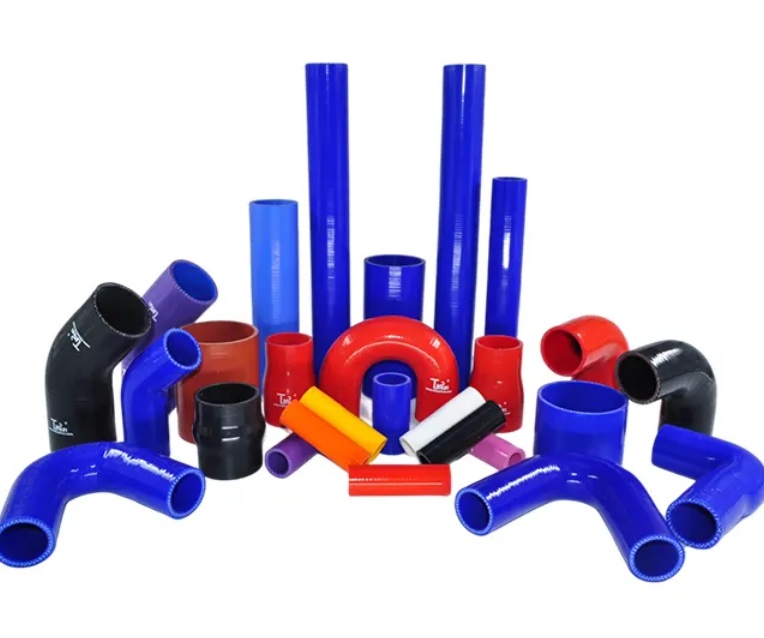

Silicone hose types and forms

Silicone hoses are excellent for use in coolant and intercooler systems because they resist temperature fluctuations and high pressure. During installation, using silicone grease is recommended to facilitate the attachment to the pipe and prevent damage.

Choosing a Clamp

When selecting clamps, it’s essential to consider both the inner diameter of the hose and the wall thickness. For example, if you need a clamp for a silicone hose with a 63.5 mm inner diameter and a wall thickness of 4 mm, the appropriate clamp size would be calculated as 63.5 mm + 2 x 4 mm = 71.5 mm, making a 70-80 mm clamp ideal.

For intercooler systems, choosing the correct clamp size is especially important, as pressure fluctuations place significant stress on connection points. It’s advisable to select a clamp that is slightly larger rather than too small, as undersizing can lead to unstable connections.

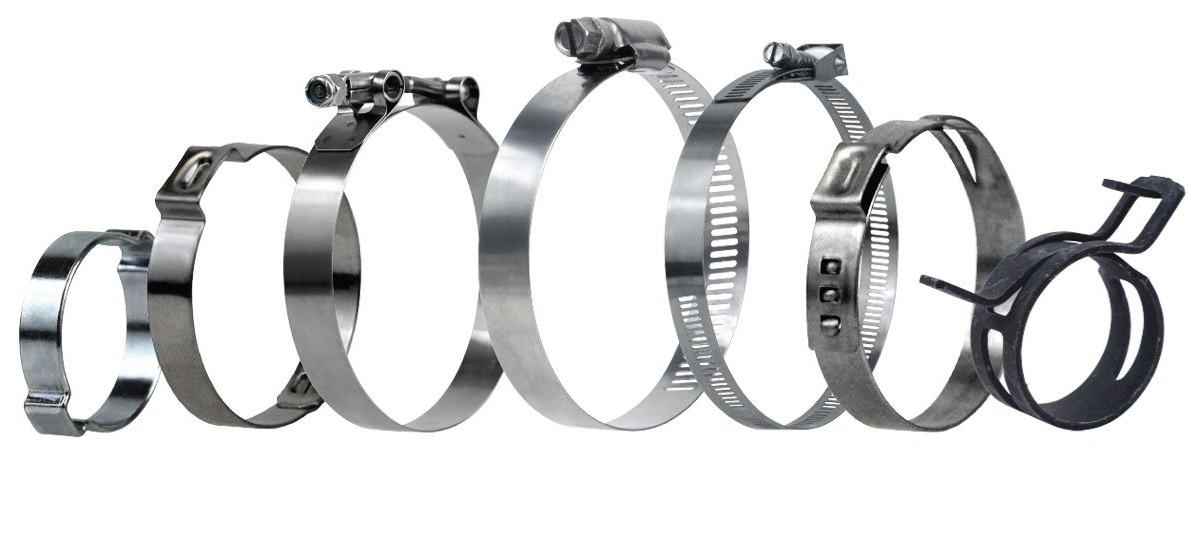

Silicone Hose Clamps and Types

Why is accurate selection important?
Choosing the right silicone hose and clamp is crucial for the efficient functioning of cooling systems and intercoolers. Improperly fitted hoses or clamps can cause air leaks, pressure loss, and reduced performance, which could lead to long-term damage to the vehicle.

Summary
Selecting the right silicone hose and clamp is essential for the reliable operation of a vehicle’s coolant and intercooler systems. The optimal hose diameter and correctly fitting clamp ensure stable airflow, maintain pressure, and extend the life of the components. If you’re unsure about your choice, contact us, and our experts will help you find the best solution!
