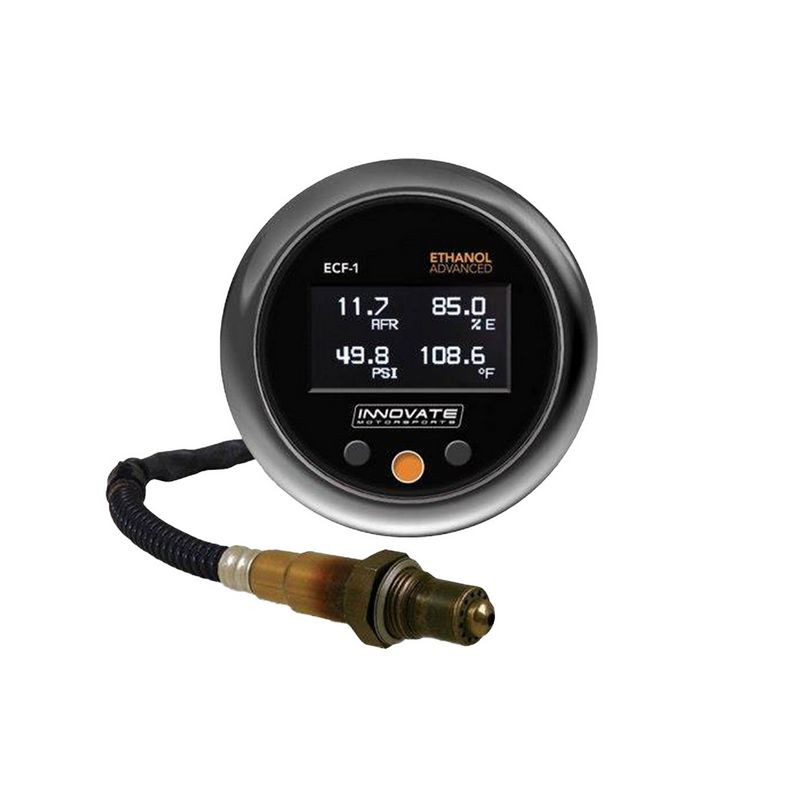

Innovate Gauge 52mm ECF-1 - (Fuel) Ethanol Content, AFR

Innovate Gauge 52mm ECF-1 - (Fuel) Ethanol Content,  AFR Ethanol Advanced gauges combine our proprietary DirectDigital™ O2 sensor control technology with application-specific sensors, an OLED display and a sophisticated ethanol content sensor that also measures fuel temperature. These capabilities allow the user to monitor and record critical metrics for accurate and reliable tuning while working with high ethanol fuel. Ethanol Advanced instruments provide the looks, safety and performance that enthusiasts are looking for! Four-in-one, ethanol content percentage, fuel temperature, boost pressure and wide-band air/fuel ratio meter Boost Vision - real-time calculated approximation of the ECU's charging limit based on the current ethanol content percentage.Configurable by user OLED display (one, two or four channel viewing mode) Ethanol %, Vacuum/Boost, Target Boost, Peak Boost, fuel temperature, Air/Fuel Ratio °F or °C, AFR or lambda, inHG, PSI, kPa or BAR On-screen error reporting for ethanol content sensor and wideband O2 Warning indicator LED if actual gain exceeds target (user programmable)Innovate Gauge 52mm ECB-1 - Ethanol Content,  AFR  Peak hold function 4 BAR map sensor, pressure range -29 inHG to 43.5 PSI (-1 to 3 BAR) 3 configurable analog outputs for use with standalone and other programmable ECUs and external data loggers. Ethanol content: 0 v = 0%, 5 v = 100% Fuel temperature: 0v = -40°F, 5v = 257°F (-40-125°C) Wideband air/fuel ratio: 0v = 7.35, 5v = 22.39 AFR (0.50-1.52 lambda) Pressure values ​​can be adjusted for height differences 52 mm (2 1/6") diameter body with replaceable faceplates and frames: Black and silver bezel, black and white bezel included No PC required for configuration Bosch LSU 4.9 Wideband O2 Sensor Patented DirectDigital™ Wideband Sensor Control, 100% Digital Wideband Air/Fuel Ratio Technology!
