Performance and Reliability: The World of Forged Pistons

Performance and Reliability: The World of Forged Pistons

Forged pistons offer superior strength and heat resistance for high-performance engines. Discover the materials and designs used in the world of motorsports!

22/08/2024 11:53 LLRacing

Performance and Reliability: The World of Forged Pistons

What is forging and why is it beneficial?

Forging is a metalworking process that shapes aluminum alloys under high pressure and temperature. This technology increases material density and homogeneity, reducing internal flaws and porosity. As a result, forged pistons withstand high pressure and heat, making them ideal for high-performance engines.

Manufacturing technology and materials

4032 Aluminum Alloy: With high silicon content (11-13%), it offers reduced thermal expansion, maintaining dimensional stability under heat fluctuations.

2618 Aluminum Alloy: With less than 1% silicon, this alloy provides greater flexibility and excellent thermal conductivity, ideal for high-temperature, high-pressure environments like racing and turbocharged engines.

Different piston designs

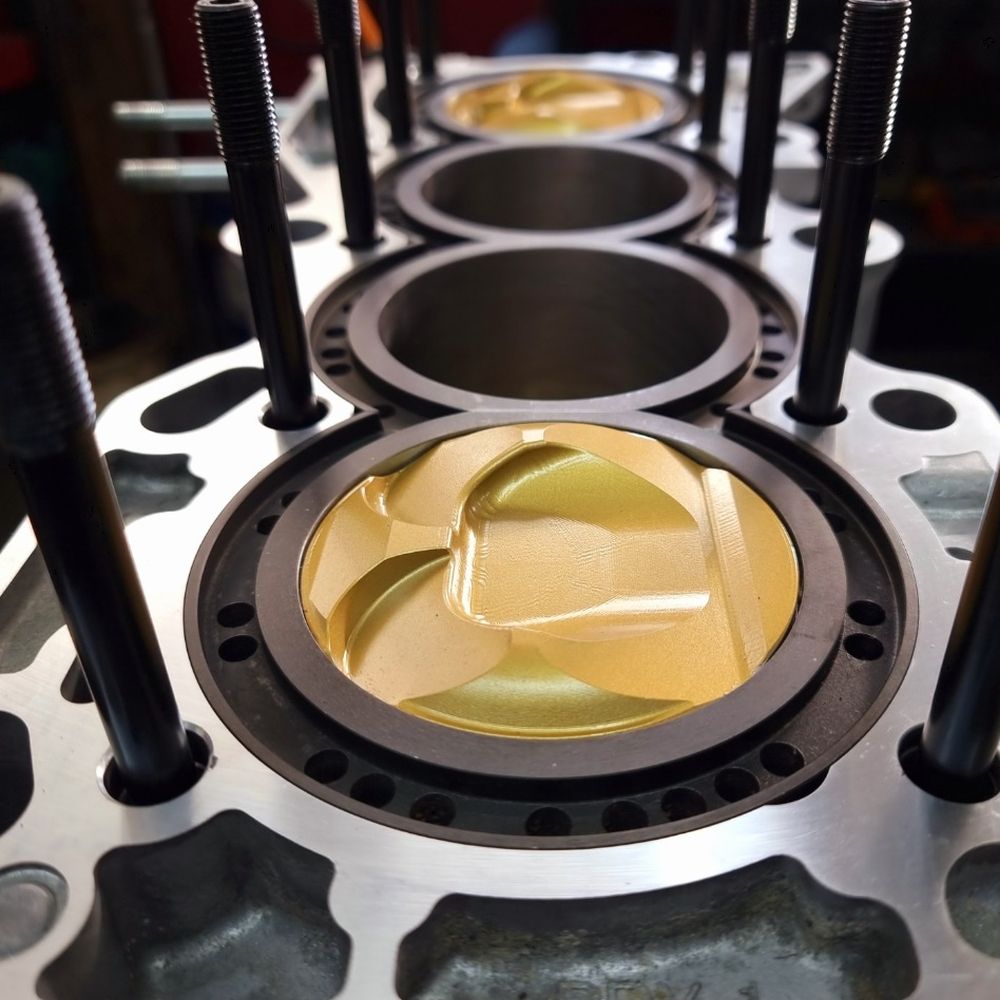

Dome Pistons: Provide higher compression ratios, increasing engine power.

Dome Forged Pistons

Dished Pistons: Offer lower compression ratios, ideal for turbocharged engines.

Dished Forged Pistons

Flat Top Pistons: Offer balanced compression, suitable for various applications.

Flat Top Pistons

Asymmetrical Pistons: Optimize load distribution and reduce friction.

Assymetrical Forged Pistons

FSR (Forged Side Relief) Pistons: Feature narrower skirts and shorter pins, reducing friction and weight while improving strength.

FSR Forged Pistons

Special coatings and treatments

Skirt Coating: Reduces friction between the piston and cylinder wall, especially during cold starts.

Piston Skirt Coating

Thermal Barrier Coating: A ceramic-based coating that reduces heat transfer and protects pistons from overheating.

Thermal Barrier Piston Coating

Dry Film Lubricant Coating: Provides additional friction reduction, complementing the skirt coating.

Hard Anodized Coating: Increases wear resistance and corrosion protection.

Hard Adonized Piston Coating

Advantages and disadvantages

Advantages: High strength, excellent heat resistance, customizability.

Disadvantages: More expensive, thermal expansion can affect performance.

Summary

Forged pistons are essential in motorsports and high-performance vehicles, offering excellent strength, heat resistance, and customizability. While they may be more expensive, their benefits, such as greater durability and longer life, far outweigh the costs.
