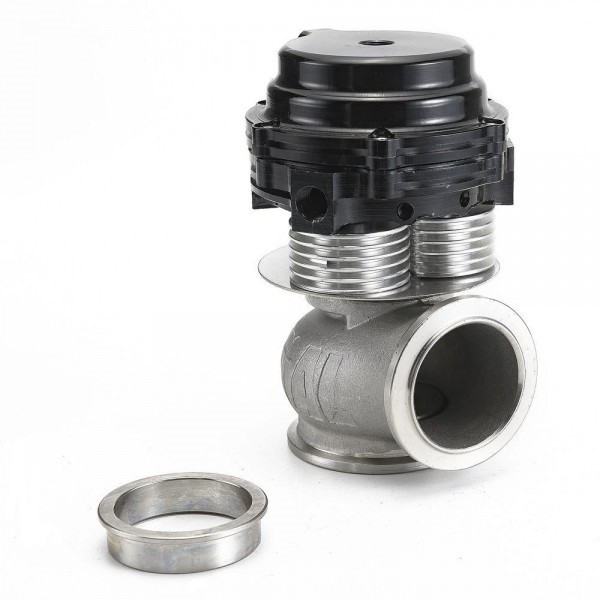

Ensuring optimal performance and reliability in turbocharged engines requires accurate boost pressure regulation. The TL MVS 38mm wastegate valve is engineered for this purpose, providing stable operation up to 37 PSI. Its compact design, standing at only 94 mm tall, allows for easy installation in tight spaces. The V-band connections facilitate straightforward and leak-free setup.
Constructed with high-temperature NiCrFe-based alloy and 347SS stainless steel for the valve and housing, this wastegate ensures longevity and dependable performance. The actuator diaphragm is made from high-temperature silicone reinforced with Nomex, while the 17-7 PH stainless steel spring maintains consistent pressure even at 900°F (483°C). The valve seat and bushing are crafted from Nitronic 60 stainless steel for excellent wear resistance.
Available in multiple colors, this wastegate can aesthetically complement your engine bay.
Key Features:
- Valve Diameter: 38 mm
- Maximum Pressure: 37 PSI
- Dimensions: Height: 94 mm
- Connection Type: V-band
- Materials:
- Valve and Housing: NiCrFe-based alloy and 347SS stainless steel
- Actuator Diaphragm: Nomex-reinforced silicone
- Spring: 17-7 PH stainless steel
- Valve Seat & Bushing: Nitronic 60 stainless steel
- Available Colors: Black, Red, Blue

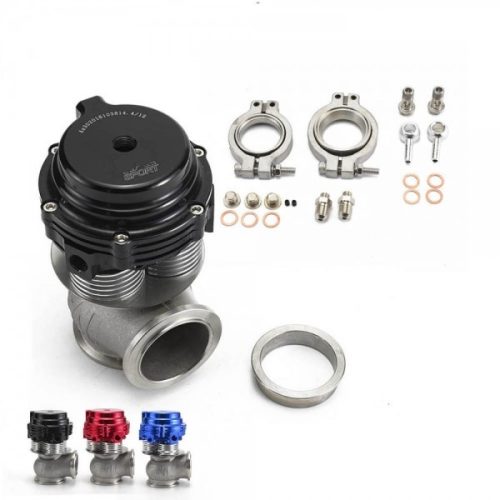

- Package Includes:
- 1 x 38mm TL MVS wastegate valve
- Valve seat
- V-band inlet and outlet clamps and flanges
- 2 x air fittings
- Plugs for unused ports
- -4 AN removable water cooling fittings
- Various pressure springs for fine-tuning boost levels
