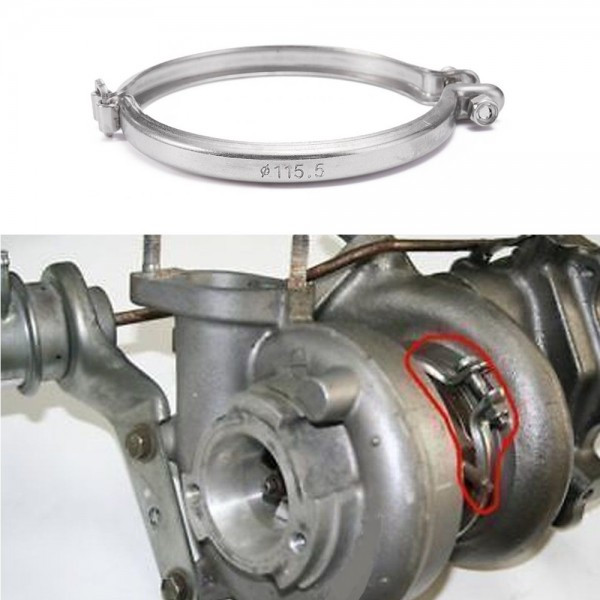

Turbine Housing Stainless Steel Clamp V-Band 115.5 mm (Mitsubishi MHI TD08 / T51R Turbo)

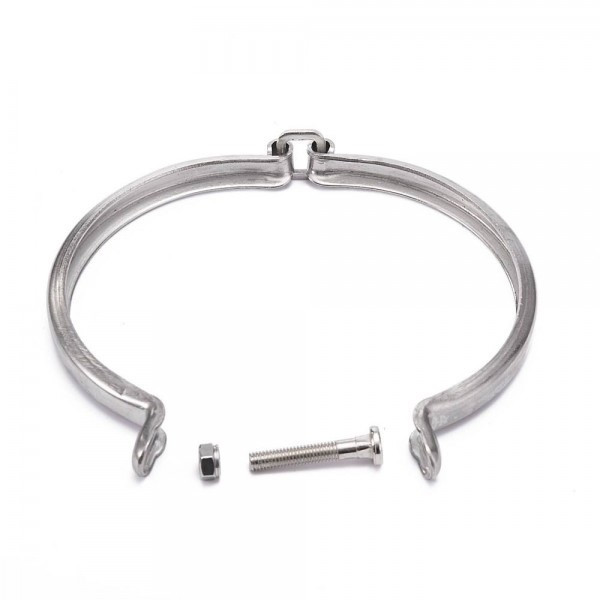

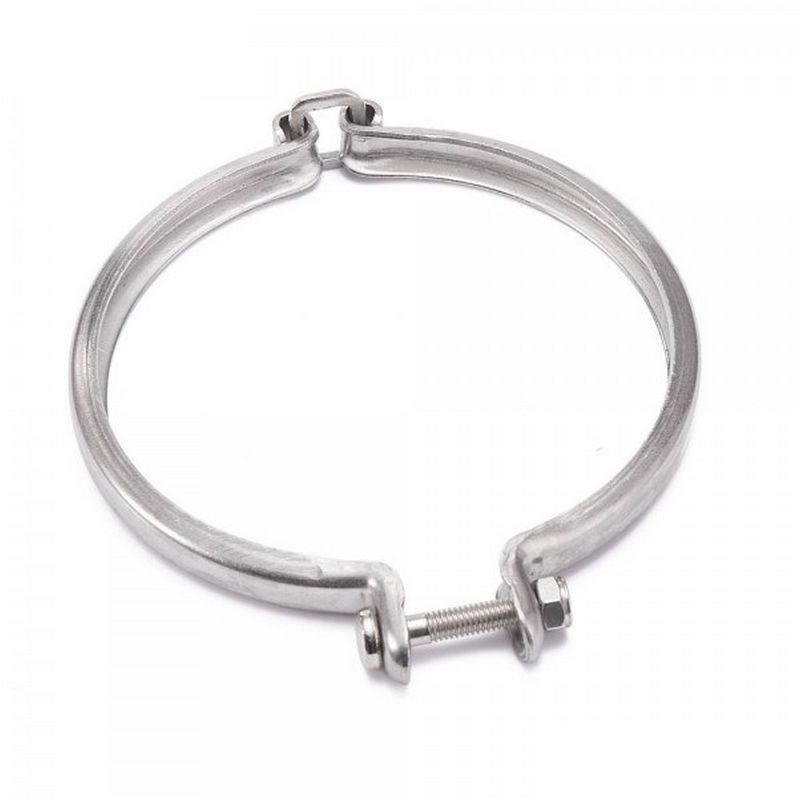

This clamp is used to clamp up the V-band style flanges of the bearing housing and the turbine housing flanges for For Mitsubishi MHI TD08 / T51R Turbo TurbochargersSpecifications:Specifications:Outside Diameter 115.5mmFlange Clamping Thickness 13.4mmMaximum Torque Setting 5NM(Newton Metres)These clamps are complete and include fixing bolt and nut.torque setting stays at its rating of 5 Newton Metres (N/M)Applications:For Mitsubishi MHI TD08 / T51R TurbochargersCORRECT TIGHTENING OF YOUR V-BAND CLAMP:Correct fitting of a V-band clamp is vital for correct operation and to ensure you do not suffer premature failure.V-Band clamps are NOT tightened excessively. They are designed to pinch the mating flanges together whilst allowing movement through expansion and vibration. Over-tightening can damage clamps, flanges and in worst case pipe work.To mount your V Band clamp, butt mating flanges together and fit clamp. Tighten clamp to a torque setting of 3.5 Newton Metres (NM). Then using a rubber mallet, tap around the mating flanges to allow the joints to fully centre and sit without any unequal load.  Then increase torque to its final torque setting of 5 Newton Metres (NM).Further tapping with a rubber mallet to removing any uneven load from the clamp or flange is beneficial  whilst checking the torque setting stays at its rating of 5 Newton Metres (NM).
