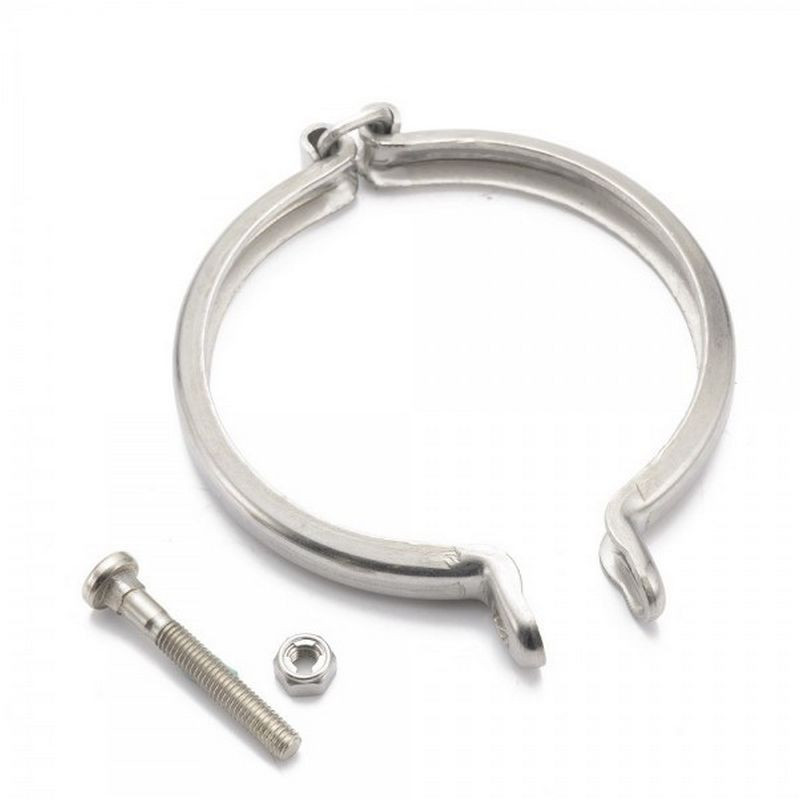

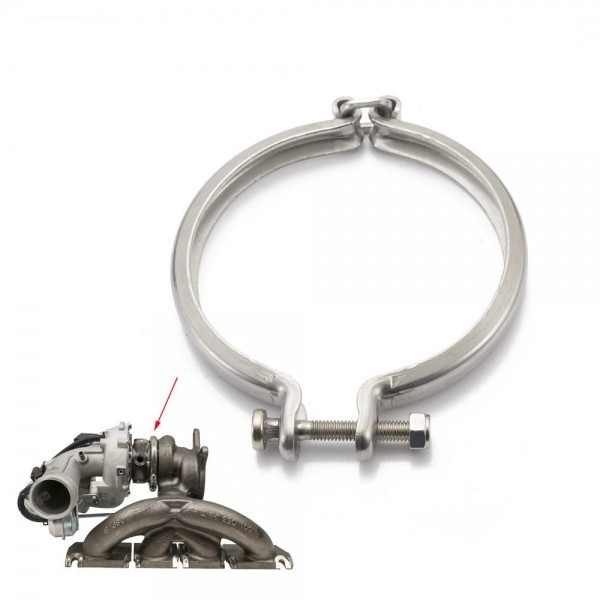

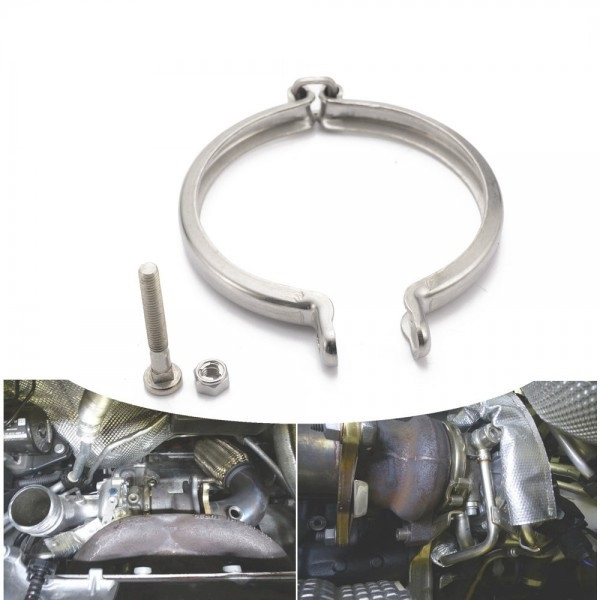

Turbine Housing Stainless Steel Clamp V-Band 95 mm - (Toyota CT26 CT20)

1 x Turbine Housing Clamp (includes fixing bolt and nut) Specification:Torque Rating: 5NMOutside Diameter: ø109mmAssembled (Flange)Size: ø95mmFlange Clamping Thickness: 16mm Application:For Mitsubishi TD07 TurboFor TOYOTA CT20 CT26 TurboFor T51R, T04Z, AX75FCORRECT TIGHTENING OF YOUR V-BAND CLAMP:V-Band clamps are NOT tightened excessively. They are designed to pinch the mating flanges together whilst allowing movement through expansion and vibration. Over-tightening can damage clamps, flanges and, in the worst case scenario, pipe work.To mount your V-Band clamp, put mating flanges together and fit clamp. Tighten clamp to a torque setting of 3.5 Newton Metres (NM). Then, using a rubber mallet, tap around the mating flanges to allow the joints to fully centre and sit without any unequal load.  Then increase torque to its final torque setting of 5 Newton Metres (NM).Further tapping with a rubber mallet to remove any uneven load from the clamp or flange is beneficial, whilst checking the torque setting stays at its rating of 5 Newton Metres (NM).
