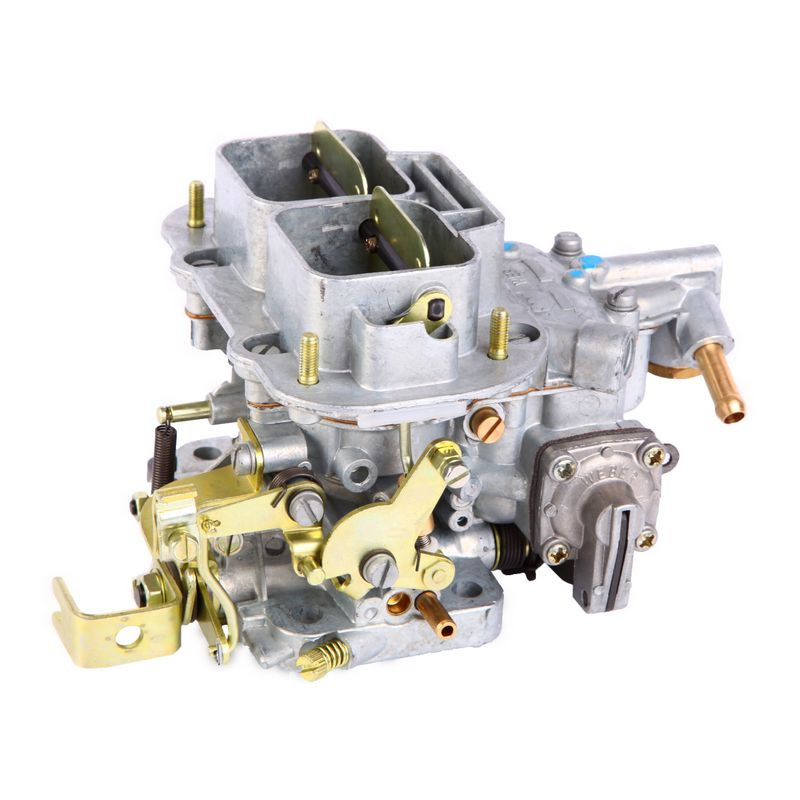

The Weber 32/36 DGV 5A Synchronous is a high-performance carburetor designed for maximum power delivery. Unlike the standard progressive version, this synchronous model ensures that both barrels open at the same time, offering increased airflow and improved throttle response—ideal for performance and motorsport applications.
Key Features:
Synchronized throttle plates – Both primary and secondary barrels open simultaneously for maximum power.
Manual choke – Equipped with a manual cold start system.
Pre-jetted for 1.6 OHC Ford engines, but compatible with various engines using alternative jetting.
Jetting Specifications:
Primary Choke Size: 26 mm
Secondary Choke Size: 27 mm
Primary Main Jet: 140
Secondary Main Jet: 135
Primary Air Correction Jet: 165
Secondary Air Correction Jet: 160
Primary Idle Jet: 55
Secondary Idle Jet: 50
Pump Jet: 50
Needle Valve Size: 200
Recommended Applications:
1.6 OHC Ford engines (Pinto, Capri, Escort, Sierra, Cortina)
Other engines with appropriate jetting modifications
