Your Turbo’s Lifesaver: Why You Need a Blow Off Valve

Your Turbo’s Lifesaver: Why You Need a Blow Off Valve

A blow off valve protects your turbo from back pressure and enhances engine performance. Learn more about how to optimize your turbo system!

05/09/2024 11:53 LLRacing

Your Turbo’s Lifesaver: Why You Need a Blow Off Valve

Introduction

To optimize the performance and protect turbocharged vehicles, the Blow Off Valve (BOV) is a critical component. This article will explain how BOVs work, their design, types, and why they are essential for a well-functioning turbo system.

How does a blow off valve work?

The BOV's role in the turbo system is to protect the turbocharger from excessive pressure, which occurs when the throttle is closed after releasing the gas pedal. At this point, the turbo continues to generate pressure, but with nowhere for the air to go, it can reverse back into the compressor. This back pressure can damage the compressor wheel and reduce the turbo's lifespan.

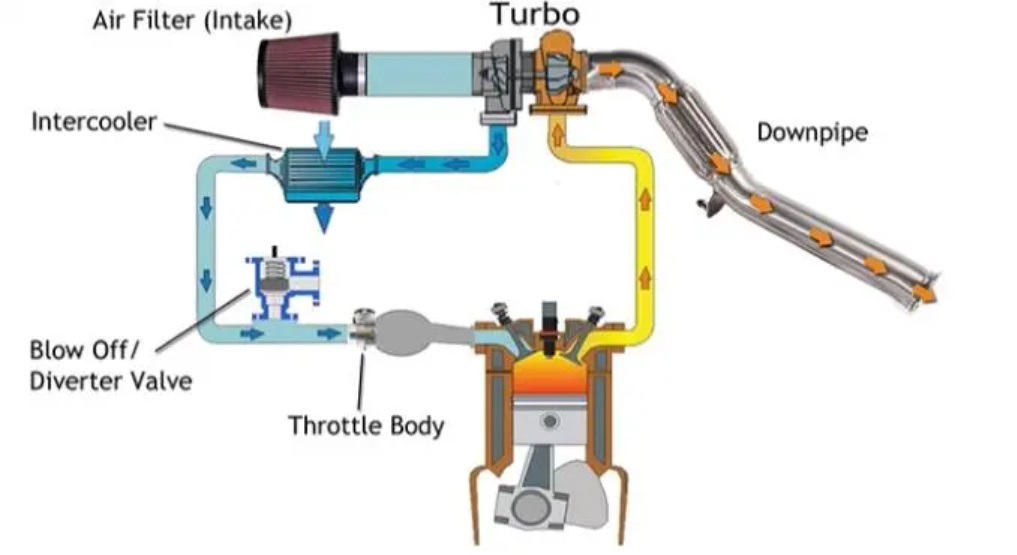

How Blow Off Valve (BOV) works

The BOV solves this problem by releasing the excess pressure before it can flow back into the compressor. The valve operates with a spring mechanism and vacuum control, allowing pressure to be quickly and efficiently vented from the system.

Blow off valve design

A BOV is a simple yet effective device composed of two main parts: a spring and a valve body. The spring is set to keep the valve closed until a certain pressure is reached. When the engine’s vacuum is strong enough to overcome the spring, the valve opens to release the pressure.

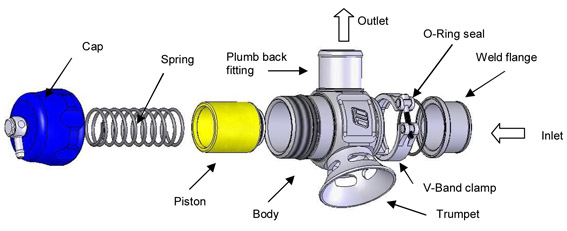

How Blow Off Valve Looks Like Inside

Types of blow off valves and their differences

Atmospheric BOV: Vents excess pressure directly into the atmosphere, producing the characteristic "blow-off" sound popular with motorsport enthusiasts.

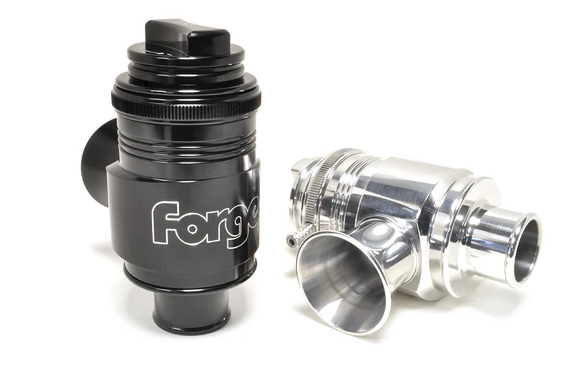

Atmospheric Bloww Off Valve

Recirculating BOV: Reintroduces excess pressure back into the turbo system, reducing turbo lag and ensuring continuous operation.

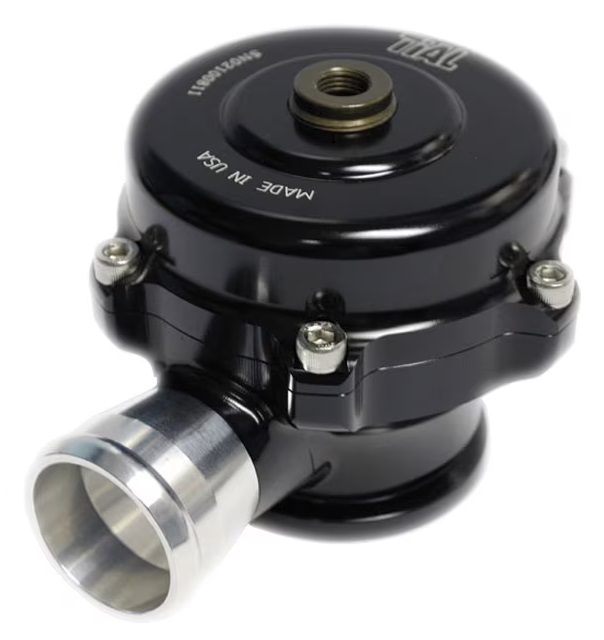

Recirculating Blow Off Valve

Hybrid BOV: Combines the features of atmospheric and recirculating valves, releasing some pressure into the atmosphere while recirculating the rest.

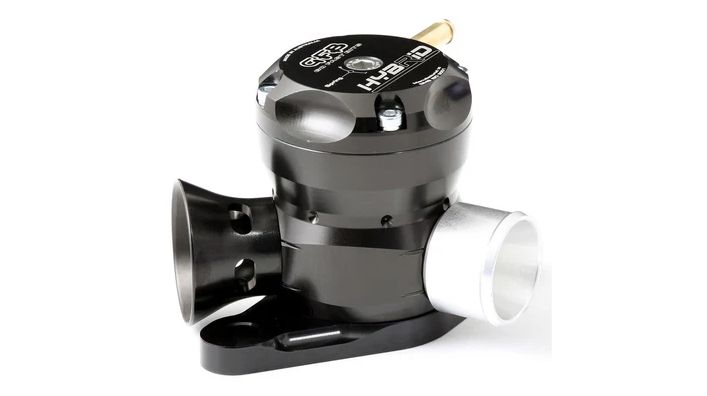

Hybrid Bloww Of Valve

Conclusion

A blow off valve is an essential component for turbocharged vehicles, enhancing turbo longevity and optimizing engine performance. When choosing the right BOV, it’s important to consider your vehicle’s specifications and driving style. The LLRacing webshop offers a wide selection of BOVs to suit any vehicle and driver preference.
