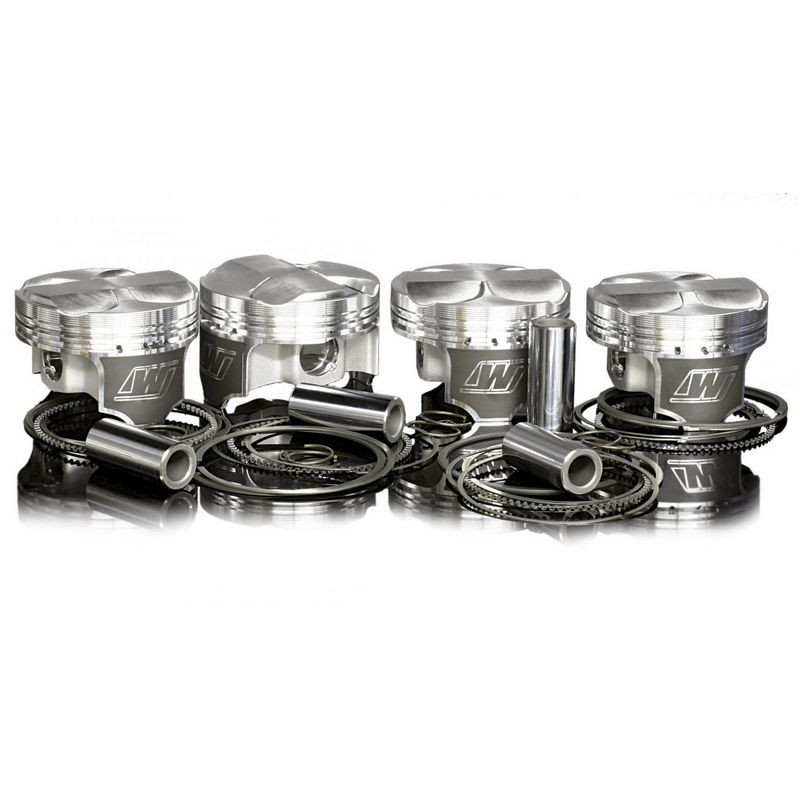

The Wiseco forged piston set is designed specifically for the Suzuki Swift Sport 1.6L 16V Turbo (M16A) engine, offering peak performance and durability required for racing. Made from 2618 aluminum, these pistons provide exceptional tensile strength. The ArmorGlide® skirt coating reduces friction and noise while enhancing reliability.
Specifications:
- Part Numbers: KE248M78, KE248M785, KE248M79
- Engine Type: Suzuki Swift Sport 1.6L 16V Turbo (M16A)
- Bore Diameters: 78.00 mm, 78.50 mm, 79.00 mm
- Wrist Pin Diameter: 20 mm (0.787 in) – HD reinforced pin
- Compression Ratio: 9.0:1
- Compression Height (CH): 30 mm
- Piston Material: 2618 aluminum with excellent heat tolerance
- Piston Chamber Volume: -15.00 cc
- Skirt Coating: ArmorGlide® coating for friction reduction and noise minimization
- Ring Set Included: Yes
- Ring Thicknesses: Top ring: 1.0 mm, Second ring: 1.2 mm, Oil ring: 2.8 mm
- Wrist Pin Material: 5115 steel
This piston set is an ideal choice for serious racers and builders who want to maximize engine performance, especially under heavy-duty conditions.
